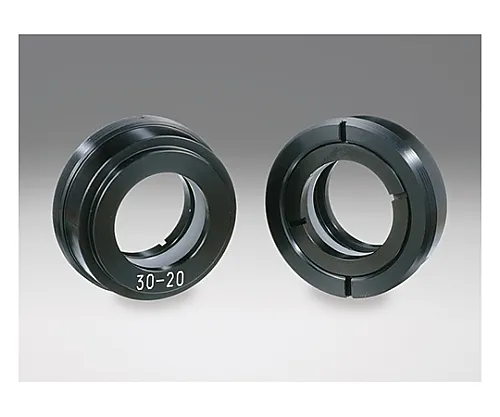

Features

• This size conversion mount is ***d when there is no type of element diameter suitable for the mirror holder.
• Mirror with diameter of φ10, φ15, φ20, φ25.4 mm is converted to φ30 mm.
• Mirrors with diameters of φ25, φ30, and φ40 mm are converted to φ50 mm.
• Can be ***d with MHAN, MHA, LMHA, MHB, and LMHB mirror holders.
• The type that converts to φ30 mm has a screw on the adapter and screws the adapter into the holder.
• The type to convert to φ50 mm secures the adapter with a screw ring.
• An adapter mount (MHG-MAD) for the MHG holder is also available.
• * When the adapter mount is attached to the gimbal mirror holder, the center of rotation of the mirror holder does not match the reflection surface of the mirror.
• * To secure the mirror, first secure the mirror to the adapter mount, and then secure the adapter mount to the mirror holder.
• * The mirror cannot be replaced with the adapter mount installed.
