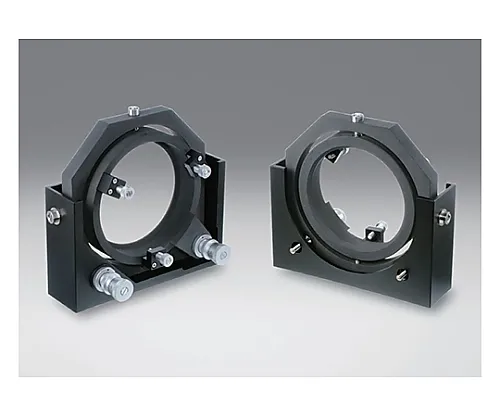

61-6990-86 Large Precision Gimbal Mirror Holder Adaptive Element Size Φ100mm Adaptive Element Thickness 5 - 28mm MHD-100
Analyzer, Testing Equipment

61-6990-86 Large Precision Gimbal Mirror Holder Adaptive Element Size Φ100mm Adaptive Element Thickness 5 - 28mm MHD-100

model: 61-6990-86
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6990-86Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6990-86
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Gimbal mirror holder for φ100 mm or larger mirror.
  • The optical path length deviation ca***d by the inclination adjustment of the mirror, which is a problem with large mirrors, can be reduced.
  • The mirror presser that secures the mirror is structured as a set bolt and nut, allowing you to secure the mirror presser with a nut in the appropriate position.
  • This is ***d to fix the mirror presser to the position where the mirror can be fixed with minimum force.
  • Since a large knob differential micro is ***d, precise angle adjustment can be made.
  • * When replacing the mirror, *** a wrench to remove the bracket of the mirror holder before inserting the mirror.
  • * If the element is pressed strongly with the mirror press, the mirror may be distorted and the surface accuracy may be degraded.

Spec

  • [

    common specification]
  • Main material: Aluminum
  • Surface treatment: Black coating (body), black anodic oxide (holder)
  • [Individual specification]
  • Compatible optics size: φ100mm
  • Compatible optics thickness: 5 - 28mm
  • Adjustment range, tilt: ±5.7°
  • Adjustment range, rotation: ±5.7°
  • Coarse resolution, tilt: Approximately 0.57°/rotation
  • Coarse resolution, rotation: Approximately 0.57°/rotation
  • Small adjustment screw display conversion, tilt: Approximately 0.0008°/DIV
  • Small adjustment screw display conversion, rotation: Approximately 0.0008°/DIV
  • Mass: 2.1kg
  • RoHS conform product
