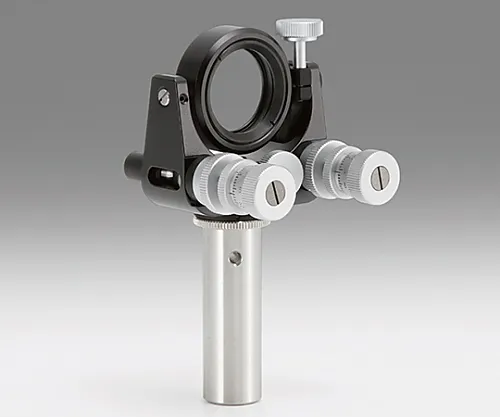

61-6990-47 Gimbal Beamsplitter Holder Adaptive Element Size Φ30mm Adaptive Element Thickness 3 - 5mm BHAN-30S
Analyzer, Testing Equipment

61-6990-47 Gimbal Beamsplitter Holder Adaptive Element Size Φ30mm Adaptive Element Thickness 3 - 5mm BHAN-30S

model: 61-6990-47
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6990-47Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6990-47
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This gimbal mirror holder improves the shape of the mirror frame so that the transmitted beam incident at 45 degrees is not chipped at the *** of the mirror frame.
  • The transmitted beam diameter is almost the same as the reflected beam diameter.
  • It can be ***d for beam branching optics, Michelson interferometers, etc.
  • We also have a BHAN-M with adjustment screws replaced with a micrometer with a scale.
  • Basic functions other than the mirror frame are the same as MHAN.
  • RO-20-60 (outer diameter φ20 mm, length 60 mm) is connected to the rod, but the rod can be replaced with other sizes.
  • * The mirror frame of BHAN-S and BHAN-DM does not come with a resin ring (made of Delrin).
  • * BHAN ***s a special type of screw ring.
  • * When using a beamsplitter with a wedge, there may be a gap between the element and the holder frame, causing rattling.
  • * If you want to firmly fix the element, we recomm*** the MHG-NL kinematic mirror holder with 3-point indication fixing on the side.

Spec

  • [

    common specification]
  • Major material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size: φ30mm
  • Compatible optics thickness: 3 - 5mm
  • Small adjustment range (tilt): ±4°
  • Small adjustment range (rotation): ±4°
  • Small adjustment resolution (tilt): Approximately 0.54°/rotation
  • Small adjustment resolution (rotation): Approximately 0.68°/rotation
  • Ultra-small adjustment resolution (tilt): ?
  • Ultra-small adjustment resolution (rotation): ?
  • Ultra-small adjustment screw display conversion (tilt): ?
  • Ultra-small adjustment screw display conversion (rotation): ?
  • Mass: 0.4kg
  • RoHS conform product
