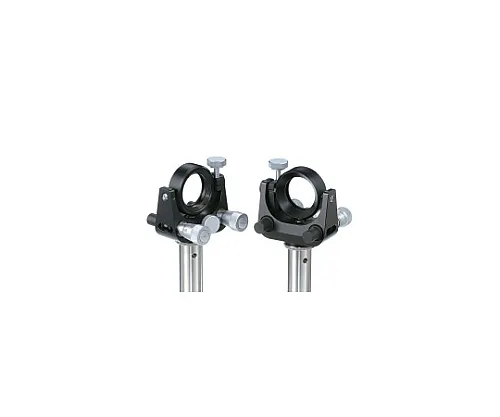

61-6990-41 Gimbal Beamsplitter Holder (Micro Type) Adaptive Element Size Φ30mm Adaptive Element Thickness 3 - 5mm BHAN-30m BHAN-30M
Analyzer, Testing Equipment

61-6990-41 Gimbal Beamsplitter Holder (Micro Type) Adaptive Element Size Φ30mm Adaptive Element Thickness 3 - 5mm BHAN-30m BHAN-30M

model: 61-6990-41
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6990-41Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6990-41
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This gimbal mirror holder improves the shape of the mirror frame so that the transmitted beam incident at 45 degrees is not chipped at the *** of the mirror frame.
  • The transmitted beam diameter is almost the same as the reflected beam diameter.
  • It can be ***d for beam branching optics, Michelson interferometers, etc.
  • Basic functions other than the mirror frame are the same as MHAN.
  • RO-20-60 (outer diameter φ20 mm, length 60 mm) is connected to the rod, but the rod can be replaced with other sizes. However, tools such as vise and pliers are required to remove and assemble the rod.
  • * Resin ring (made of Delrin) is not attached to the mirror frame.
  • * When using a beamsplitter with a wedge, there may be a gap between the element and the holder frame, causing rattling.
  • * If you want to firmly fix the element, we recomm*** the kinematic mirror holder (MHG-NL) with 3-point indication fixing on the side.

Spec

  • [

    common specification]
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size: φ30mm
  • Compatible optics thickness: 3 - 5mm
  • Movement amount, tilt: ±4°
  • Movement amount, rotation: ±4°
  • Resolution, tilt: Approximately 0.54°/rotation
  • Resolution, rotation: Approximately 0.68°/rotation
  • Mass: 0.4kg
  • RoHS conform product
