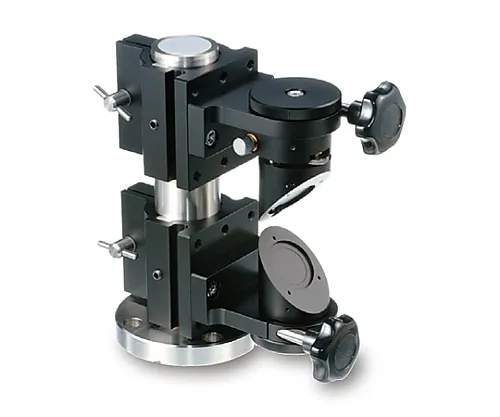

61-6989-91 Flutter/Tremor Beam Steering Component Adaptive Element Size Φ30mm Adaptive Elements Thickness 5mm BSRU-177
Analyzer, Testing Equipment

61-6989-91 Flutter/Tremor Beam Steering Component Adaptive Element Size Φ30mm Adaptive Elements Thickness 5mm BSRU-177

model: 61-6989-91
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6989-91Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6989-91
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A holder for converting a beam of a stationary laser with a low optical axis to a high optical axis.
  • The height of the optical axis of both mirrors can be varied, so they can be ***d in lasers and optical systems of various heights.
  • It is a product with 2 pairs of upper and lower sets of supports with φ38.1 mm vibration isolation function.
  • The vibration isolation of the supports and the high rigidity of the holder provide high stability.
  • Glue the mirror (φ30 mm, Thickness 5 mm) sold separately to the holder.
  • In addition to the optical axis height of the mirror, the position of the mirror (on a circumference with a radius of 75 mm from the pole) and the direction of the mirror can be coarsely adjusted and firmly fixed with a clamp.
  • An adjustment screw is attached to the mirror on the exit side, and the exit beam angle can be adjusted.
  • To achieve vibration isolation performance, install the support directly on the optical laboratory table or the vibration isolation table.

Spec

  • [

    common specification]
  • Strut: Material: Stainless Steel, surface treatment: None
  • Adjustment section: Main material: Aluminum surface treatment: Black anodic oxide
  • [Individual specification]
  • Compatible optics size: φ30mm
  • Compatible optics thickness: 5mm
  • A: 177.8mm
  • B: 33 - 40mm
  • Mass: 3kg
  • RoHS conform product
