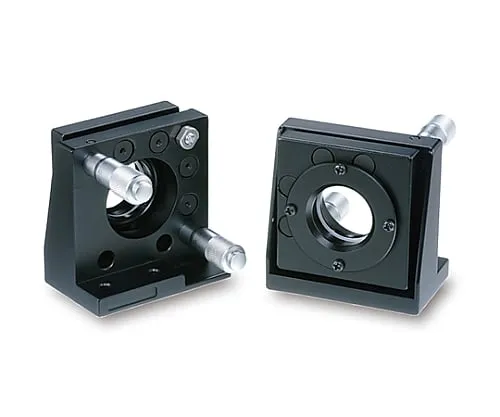

61-6989-86 Kinematic Type Mirror Holder Adaptive Element Size Φ80mm Adaptive Element Thickness 3 - 18mm MHB-80M

model: 61-6989-86
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6989-86Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6989-86
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This kinematic mirror holder can be fixed directly to a base plate, etc., and has a highly rigid bracket as its base.
  • In addition to the mirror, it can also be ***d as a holder for a He-Ne laser light source or a beam expander.
  • The mirror case can be removed, and various samples and lasers can be attached by custom-making the case.
  • Three types of mirror adjustment are available: screw type (***: S), micrometer head type (***: M), and differential micro type (***: DM).
  • In a kinematic expression, the center of rotation is at the upper-left fulcrum.
  • Kinematic mirror holders (MHG) are also available for *** with beam splitters.
  • A gimbal mirror holder (MHAN) is also available to freely change the direction of the reflected beam.
  • * The center of rotation of the angle adjustment of the mirror is not at the center of the mirror.
  • * Use BSHL or MHAN when the center of the mirror needs an adjustment center.
  • * MHB-50S/50M and MHB-50.8S/50.8M do not have the same depth of mounting holes. *Adjust the screw length to fit the hole depth.
  • * When the beam splitter is ***d at 45 degree incidence, the effective diameter of the transmitted light is small beca*** it is blocked by the frame of the mirror.
  • * When using with 45 degree transmission, *** MHG-NP kinematic mirror holder or gimbal beam splitter holder MHAN.

Spec

  • [

    common specification]
  • Main material: Aluminum
  • Surface treatment: Black coating
  • [Individual specification]
  • Compatible optics size: φ80mm
  • Compatible optics thickness: 3 - 18mm
  • Adjustment range, tilt: ±2.3°
  • Adjustment range, rotation: ±2.3°
  • Coarse resolution, tilt: Approximately 0.29°/rotation
  • Coarse resolution, rotation: Approximately 0.29°/rotation
  • Micro display conversion, tilt: Approximately 0.005°/DIV
  • Micro display conversion, rotation: Approximately 0.005°/DIV
  • Mass: 0.95kg
  • RoHS conform product
