Features

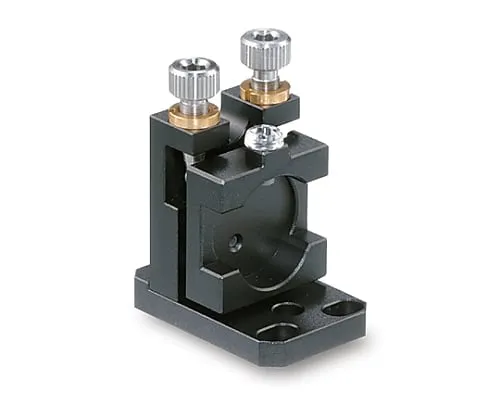

• It is a small mirror holder with the operation direction facing up.
• It can be placed in a small space and operated from above, making the optical system compact without spreading laterally.
• The side of the mirror is held down by a resin screw so that the stress generated when fixing the mirror can be adjusted.
• Since the control part for adjustment is attached to the upper side, the operability does not deteriorate even if the holders are close to each other.
• A gimbal top operation mirror holder (BSHL) is also available where the center of rotation for fine adjustment is located at the center of the mirror reflecting surface.
• * Since the mirror frame is attached to the rear side of the mirror, the position of the reflecting surface changes when the mirror thickness changes.
• * The mirror reflection surface is offset 12 mm from the center of the rod (mounting center).
