Features

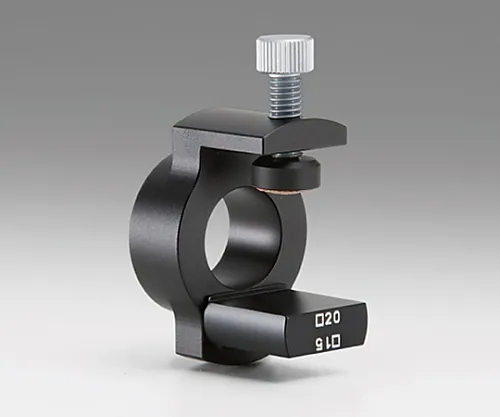

• It is an adapter that enables the excellent operability of the kinematic mirror holder to be obtained directly by the cube element or prism of the beam splitter.
• Locking the NOMI LOCKTM secures the adjustment screws and provides long-term stability.
• The rotation (θ) and pitch inclination (α) of the prism or cube elements can be finely adjusted, but the yaw inclination (β) cannot be adjusted.
• Adjust the yaw inclination (β) by fixing the prism adapter to the kinematic mirror holder in the correct orientation.
• Since the mounting part of the prism adapter has a transparent hole, it can be ***d in four directions of the cube element.
• There is an offset of 40 mm from the base mounting hole of the kinematic mirror holder to the center of the cube element.
• Take into consideration the displacement of the cube element due to the fixed position of the holder and adjustment.
• By changing the vertical orientation of the prism support of the prism adapter, you can position two different cube elements at the center of the holder.
