61-6988-78 NOMI LOCK(TM) Kinematic Mirror Holder Adaptive Element Size Φ12.7mm MHG-MP12.7-NL
Analyzer, Testing Equipment

61-6988-78 NOMI LOCK(TM) Kinematic Mirror Holder Adaptive Element Size Φ12.7mm MHG-MP12.7-NL

model: 61-6988-78
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6988-78Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6988-78
Product Brand: SIGMAKOKI CO., LTD.

Features

  • The Takayasu standard kinematic mirror holder is equipped with the company's original locking mechanism (NOMI LOCK TM).
  • NOMI LOCKTM A new type of locking mechanism that allows you to vary the torque of the adjustment screw.
  • Ideal for applications such as interferometers and laser processing equipment where beam displacement after adjustment is a problem.
  • Kinematic mirror holders have a simple structure, excellent rigidity and stability, and are ***d in interferometers and laser resonators.

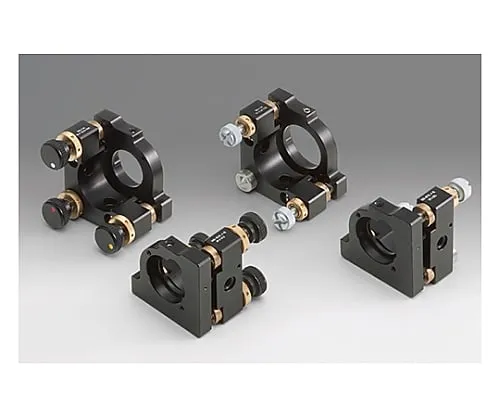

  • There are two types, MHG-HS which is a Takayasu type mirror holder and MHG-MP which is a mass production type mirror holder.
  • The high stability type (MHG-HS) has a large screw knob that allows adjustment of the fulcrum as well as the two points of action, and also the vertical displacement of the mirror.
  • Even if NOMI LOCK TM is ***d in the interferometer, the optical axis deviation is within one interference fringe.
  • (Individual differences due to locking operation)
  • The mirror side is held in place at three points so that the stress generated when the mirror is held in place can be adjusted.
  • Since there is no restriction on the effective diameter due to the screw ring, a large effective diameter can be obtained with reflected or transmitted light.
  • Can be attached to post stand PST (sold separately) or rod RO of tip M6 (sold separately).
  • The production type (MHG-MP) can be fixed directly to the plate or stage with M4 screws.
  • The mass-produced model (MHG-MP) comes with a NOMI IOCKTM dedicated spanner.
  • * The center of rotation of the mass-produced type (MHG-MP) is located outside the mirror (the fulcrum of the holder).
  • * Use the rod mounting plate (MHG -** BPRO) when fixing the Takayasu standard (MHG-HS) to a flat surface.
  • * The optical axis is 10 mm higher when the rod mounting plate (MHG -** BPRO) is ***d.
  • * Since the mirror frame abuts on the rear side of the mirror, the position of the reflecting surface changes when the mirror thickness changes.

Spec

  • [

    common specification]
  • Major material: Aluminum (brass only for MHG-MP12.7-NL)
  • Surface treatment: Black anodic oxide (super black chrome only for MHG-12.7-NL)
  • [Individual specification]
  • Compatible optics size: φ12.7mm
  • Compatible optics thickness: 3 - 5mm
  • Number of adjustment shafts: 3
  • Adjustment range (tilt): ±3°
  • Adjustment range (rotation): ±3°
  • Resolution (tilt): Approximately 0.74°/rotation
  • Resolution (rotation): Approximately 0.74°/rotation
  • Mass: 0.04kg
  • RoHS conform product
