61-6988-73 Kinematic Mirror Holder Adaptive Element Size Φ12.7mm MHG-MP12.7
Analyzer, Testing Equipment

61-6988-73 Kinematic Mirror Holder Adaptive Element Size Φ12.7mm MHG-MP12.7

model: 61-6988-73
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6988-73Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6988-73
Product Brand: SIGMAKOKI CO., LTD.

Features

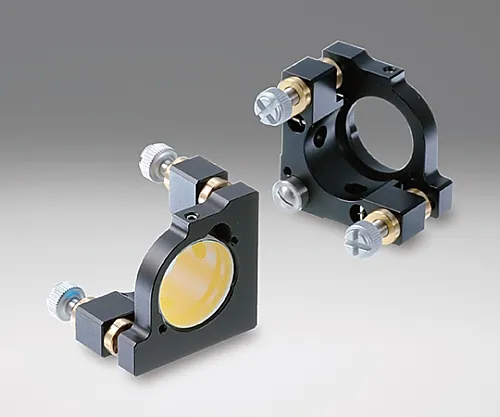

  • This is a very simple shaped kinematic mirror holder made of two boards.
  • Since the structure is simple, it is excellent for aging and temperature change.
  • Can be ***d as a mirror holder for laser resonators and interferometers.
  • There are two types, MHG-HS which is a Takayasu type mirror holder and MHG-MP which is a mass production type mirror holder.
  • The high stability type (MHG-HS) has a large screw knob that allows adjustment of the fulcrum as well as the two points of action, and also the vertical displacement of the mirror.
  • Other than the MHG-HS type, the adjustment screw has a set bolt type locking mechanism.
  • The mirror side is held in place at three points so that the stress generated when the mirror is held in place can be adjusted.
  • Since there is no restriction on the effective diameter due to the screw ring, a large effective diameter can be obtained with reflected or transmitted light.
  • Can be attached to a post stand (PST: sold separately) or a rod (RO: sold separately) on the tip M6.
  • The production type (MHG-MP) can be fixed directly to the plate or stage with M4 screws.
  • * The center of rotation of the mass-produced type (MHG-MP) is located outside the mirror (the fulcrum of the holder).
  • * Use the rod mounting plate (MHG -** BPRO) when fixing the Takayasu standard (MHG-HS) to a flat surface.
  • * The optical axis is 10 mm higher when the rod mounting plate (MHG -** BPRO) is ***d.
  • * Since the mirror frame is attached to the rear side of the mirror, the position of the reflecting surface changes when the mirror thickness changes.

Spec

  • [

    common specification]
  • Main material: Aluminum (brass only for MHG-MP12.7)
  • Surface treatment: Black anodic oxide (super black chrome only for MHG-MP12.7)
  • [Individual specification]
  • Compatible optics size: φ12.7mm
  • Compatible optics thickness: 3 - 5mm
  • Number of adjustment shafts: 3 axes
  • Adjustment range, tilt: ±3°
  • Adjustment range, rotation: ±3°
  • Resolution, rotation: Approximately 0.74°/rotation
  • Resolution, tilt: Approximately 0.74°/rotation
  • Mass: 0.04kg
  • RoHS conform product
