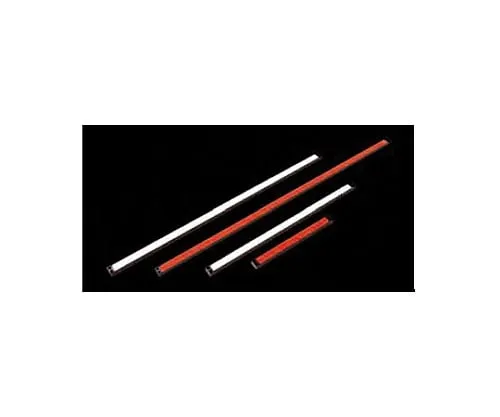

61-6986-55 Line Sensor Illumination (Bright Field) SLLI-100SW
Product Description
Product Model: 61-6986-55Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6986-55
Product Brand: SIGMAKOKI CO., LTD.
Features
- Line lighting with the same brightness as fluorescent lighting.
- Longer life (50,000 hours) than fluorescent lamps.
- SLLIH-200SW (light emitting surface 200) and SLLIH-300SW (light emitting surface 300) are available.
- * Use the dedicated power supply SPSB3-30024.
- A dedicated cable is required to connect the PSB3-30024 to the lighting.
Spec
-
[
Common specification] - LED emission color: White
- Peak emission wavelength: 5500K typ.
- Input voltage: DC24V
- Cable length: 0.3m
- Input connector: SMR-03V-B x 1 pieces
- Polarity, Signale: 1 : Anode (+) brown, 2 : NC, 3 : Cathode (?) blue color
- Case material: Aluminum alloy, polyacetal
- Cooling method: Natural air cooling
- Used temperature and humidity: Temperature: 0 - 40℃, Humidity: 20 - 85% RH (non-condensing)
- Storage temperature and humidity: Temperature: ?20 - 60℃, Humidity: 20 - 85% RH (non-condensing)
- Outer dimensions: (W) 332mm x (D) 27.2mm x (H) 18mm
- Accessories: Instruction manual
- [Individual specification]
- Product name: Lighting for bright visual field line sensor
- Light emitting color: White
- Light-emitting surface size: 100mm x 100mm
- Connector shape: SM Connector
- Power consumption: 24V/23W
- CE conform product
- RoHS conform product
