61-6986-42 Light Guide Adapter SLA-ADP-SU
Analyzer, Testing Equipment

61-6986-42 Light Guide Adapter SLA-ADP-SU

model: 61-6986-42
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6986-42Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6986-42
Product Brand: SIGMAKOKI CO., LTD.

Features

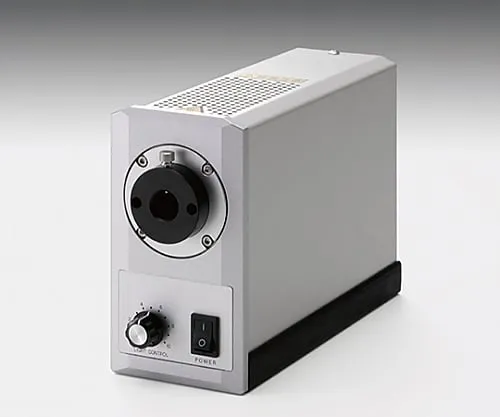

  • This LED light source device ***s a high-brightness white LED and achieves an illuminance close to 100 W halogen.
  • Quiet with a natural heat dissipation design (fanless) that is fri***ly to dust and vibration averse devices and high magnification optical systems.
  • Since there is no cooling fan, there is no more trouble ca***d by the fan.
  • External dimming is standard.
  • It has about 15~30 times longer life than halogen light source. It also significantly reduces maintenance downtime.
  • An optional compatible adapter is available so you don't have to waste another company's light guide.
  • We also have a special light guide.
  • A unique optical and cooling design provides high light and natural heat dissipation (fanless).
  • Low power consumption 20 W.
  • 67~89% less than halogen light sources.
  • Since there is little heat generation, it does not affect the concern of burns or the subject.

Spec

  • [

    Common specification]
  • Light emitting color: White color light
  • Color temperature: 5600K *1 (typ.)
  • Rated input voltage: AC100V-240V±10%
  • Power consumption: 20W
  • Input frequency: 50/60Hz
  • Function and dimming: (1) LED lighting ON/OFF function, (2) Continuous dimming by the manual full dimming volume, (3) remote: Analog Input voltage DC 0V to +5V, *8 bit digital dimming is optional (please ask us separately)
  • Cooling method:
  • Environmental conditions: Ambient temperature: 0℃ to +40℃ , Ambient humidity: 20% - 80%RH (No condensation), Indoor *** up to an altitude of 2,000m
  • Average illuminance *2 (W.D. = 100mm): When the handle diameter of the light guide is φ5mm, 17,900lx, When the handle diameter of the light guide is φ8mm, 40,000lx
  • Average illuminance *2 (W.D. = 50mm): When the handle diameter of the light guide is φ5mm, 68,000lx, When the handle diameter of the light guide is φ8mm, 130,000lx
  • Average illuminance *2 (W.D = 15mm): When the handle diameter of the light guide is φ5mm, 510,000lx, When the handle diameter of the light guide is φ8mm, 700,000lx
  • LED Life: 30,000H *3
  • Outer dimensions: (W) 78 x (H) 144 x (D) 200mm (excluding projections)
  • Mass: 2.0 (excluding power code) kg
  • *1 Color temperature: Is reference value.
  • *2 Illuminance: Light guide (straight type, Length = 500mm) Reference value measured at each operating distance (W.D.) from the *** surface.
  • *3 Lifetime: Varies dep***ing on the specification environment temperature. Is not a guaranteed value.
  • [Individual specification]
  • Outer dimensions: φ13mm L=15mm
  • Color developing light: ?
  • Color Temperature (reference values): ?
  • Rated input voltage: ?
  • Power consumption: ?
  • Input frequency: ?
  • Function and dimming: ?
  • Cooling method: ?
  • Environmental conditions: ?
  • Average illuminance (reference values): ?
  • LED Life: ?
  • Mass: ?
  • RoHS conform product
