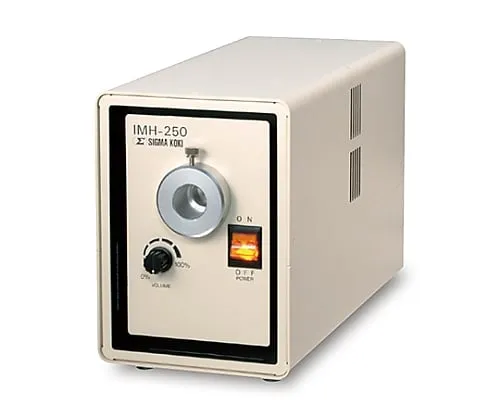

61-6985-81 Metal Halide Fiber Illumination System Low-Light Intensity Ripple (High Stability) Type IMH-250
Analyzer, Testing Equipment

61-6985-81 Metal Halide Fiber Illumination System Low-Light Intensity Ripple (High Stability) Type IMH-250

model: 61-6985-81
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6985-81Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6985-81
Product Brand: SIGMAKOKI CO., LTD.

Features

  • High-brightness, high-precision lighting system with metal halide lamp and twin mirror system.
  • Since the short-arc metal halide lamp is ***d, the spectral characteristics are closer to human visual sensitivity than those of halogen and other types of illumination, enabling efficient bright illumination.
  • A newly designed optical system with a combination of elliptical and spherical mirrors allows the light to be foc***d very efficiently into the light guide.
  • We *** a cold mirror and a heat absorption filter to prevent heat.
  • Since the lamp and the elliptical cold mirror are integrated, replacing the exhausted lamp is a one-touch method without adjustment.
  • By adopting a mechanical aperture, the amount of light can be secured according to the purpose of ***.
  • IMH-250 is a low light ripple type.
  • Since a DC-lit metal halide lamp is ***d, it is suitable for high-speed image processing with very little ripple compared to an AC lit metal halide lamp.
  • We also have a special light guide.

Spec

  • [

    Common specification]
  • Lamp format: Mirror integral metal halide lamp DC250 W
  • Lamp life: Average about 2000 hours (when light quantity decreases by 30% compared to the initial value)
  • Power supply: AC90 - 132V 50/60Hz
  • Input voltage: AC100V±10% 50/60Hz
  • Power consumption: Approximately 330W
  • Illuminance: L=500mm, 80000lx or higher at the position of 100mm from light guide *** face of φ5 (initial value)
  • Illuminance variation: About 1.5%
  • Color temperature: 7,500°K
  • Cooling method: Forced air cooling method
  • Usage environments: Temperature: 5℃ - 35℃ humidity: 70% or less
  • Outer dimensions: (W) 150 x (H) 205 x (D) 309mm (excluding rubber foot, projections)
  • Mass: Approx 6.0kg
  • [Individual specification]
  • Product overview: Low light intensity ripple (high stability) type
  • Light quantity adjusting method: Manual
  • Shutter open/close: No
  • Power ON/OFF: Manual
  • External control connector: No
  • Interface: No
