61-6985-67 High Performance Stage 60 x 60mm HPS60-20X-M5
Analyzer, Testing Equipment

61-6985-67 High Performance Stage 60 x 60mm HPS60-20X-M5

model: 61-6985-67
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6985-67Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6985-67
Product Brand: SIGMAKOKI CO., LTD.

Features

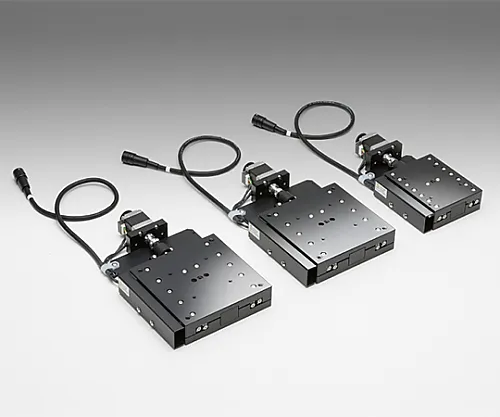

  • An automatic direct movement stage with excellent accuracy and durability, employing ball screws and ball guides.
  • The *** of ball screws improves durability over the previous TSDM series.
  • By replacing the cross-roller guide with the company's own high-precision integrated system, we realized a lower price than the TAMM series.

Spec

  • [

    Common specification]
  • Motor type: 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
  • Motor product number: PK523HPB-C12 (□28mm)
  • Motor step angle: 0.72°
  • Sensor power voltage: DC5V to +24V±10%
  • Sensor power consumption: 60mA or less (20mA or less per 1 sensor)
  • Sensor control output: NPN Open collector output DC 30V or less 50mA or less, Residual voltage 0.4V or below (when load current is 16mA) residual voltage 0.7 or below (when load current is 50mA)
  • Sensor output logic: When shading: Output transistor OFF (non-conducting): Limit sensor, When shading: Output transistor ON (conducting): Origin sensor
  • Compatible driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
  • Compatible controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
  • [Individual specification]
  • Movement amount: 20mm
  • Table surface size: 60 x 60mm
  • Feed crew: Ball screw diameter φ6mm, Lead 1mm
  • Movement guide: Ball guide
  • Stage material: Aluminum
  • Surface treatment: Black anodic oxide
  • Mass: 0.6kg
  • Resolution (full): 2μm/Pulse
  • Resolution (half): 1μm/pulse
  • Max speed: 10mm/sec
  • Positioning accuracy: 15μm
  • Repeatable positioning accuracy: ±1μm
  • Withstand load: 49N (5.0kgf)
  • Moment rigidity/pitch: 0.4″/N・cm
  • Moment rigidity/yaw: 0.4″
  • Moment rigidity/roll: 0.3″
  • Lost motion: 1μm
  • Backlash: 1μm
  • Parallelism: 30μm
  • Running parallelism: 10μm
  • Pitching: 25″
  • Yawing: 25″
  • Sensor product number: Microphoto sensor: GP1S097HCZ (Sharp Corporation)
  • Limit sensors: Is available (NORMAL CLOSE)
  • Origin sensor: Is available (NORMAL OPEN)
  • Proximity origin sensor: No
  • RoHS conform product
