61-6985-63 Vacuum Specification Automatic Stage Movement Amount 35mm VSGSP20-35X
Product Description
Product Model: 61-6985-63Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6985-63
Product Brand: SIGMAKOKI CO., LTD.
Features

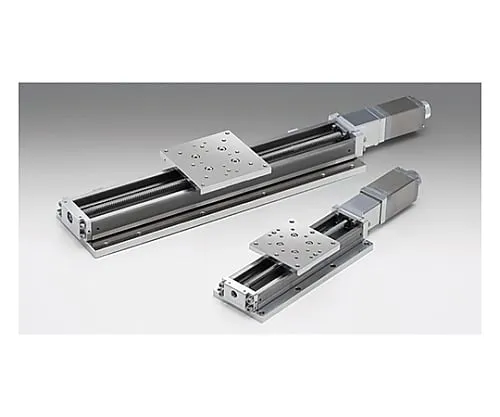

- Automatic stage equipped with limit sensor for vacuum environment.
- The linear motion system achieves a long stroke of 35~200 mm, which is similar to the conventional SGSP series and compact.
- The motor cable and sensor cable are 1 meter of loose wire.
Spec
-
[
Common specification]
- Motor type: Vacuum specification 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
- Motor product number: A7298-90215KV (□28mm)
- Motor step angle: 0.72°
- Sensor power voltage: DC5 - 24V±10%
- Sensor power consumption: 10mA (Max 20mA)
- Sensor control output: Mechanical
- Sensor output logic: NORMAL CLOSE
- Compatible driver: SG-5M, SG-55M, SG-514MSC, MC-7514PCL
- Compatible controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
- [Individual specification]
- Movement amount: 35mm
- Table surface size: 60 x 60mm
- Feed crew: Precision grinding screw φ6mm, Lead 1mm
- Movement guide: Outer rail structure
- Stage material: Aluminum, Stainless Steel
- Surface treatment: No
- Mass: 1.0kg
- Resolution/(full): 2μm/Pulse
- Resolution (half): 1μm/pulse
- Max speed: 10mm/sec
- Repeat positioning accuracy: 5μm
- Withstand load: 39.2N (4.0kgf)
- Lost motion: 3μm
- Sensor product number: GN-PT5M3B-1 (Metrol Co., Ltd.)
- Limit sensors: Vacuum touch sensor (NORMAL CLOSE)
- Origin sensor: No
- Proximity origin sensor: No
