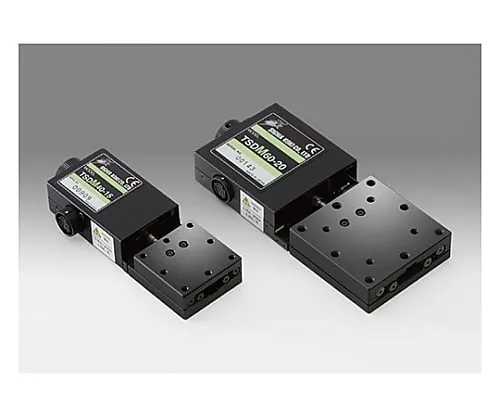

Spec

• [

  Common specification]

• Motor type: 5 phase stepping motor 0.35A/phase (Oriental Motor (Co., Ltd))
• Motor product number: PK513PB-C9 (□20mm)
• Motor step angle: 0.72°
• Sensor power voltage: DC5 - 24V±10%
• Sensor power consumption: TSDM40-15X: 40mA or less (20mA or less per 1 sensor), TSDM60-20X: 30mA or less (15mA or less per 1 sensor)
• Sensor control output: NPN open collector output DC 30V or less 50mA or less
• Sensor output logic: When shading: Output transistor OFF (non-conducting)
• Compatible driver: SG-5MA, SG-55MA, SG-514MSC
• Compatible controller: PAT-001, GSC-01, SHOT-102, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S
• [Individual specification]
• Movement amount: 15mm
• Table surface size: 40 x 40mm
• Feed crew: Precision grinding screw φ5mm, Lead 0.5mm
• Movement guide: Ball guide
• Stage material: Iron
• Surface treatment: Super black chrome
• Mass: 0.35kg
• Resolution (full): 1μm/pulse
• Resolution (half): 0.5μm/Pulse
• Max speed: 5mm/sec
• Positioning accuracy: 20μm
• Repeatable positioning accuracy: 10μm
• Withstand load: 29.4N (3.0kgf)
• Moment rigidity/pitch: 0.4″/N・cm
• Moment rigidity/yaw: 0.4″/N・cm
• Moment rigidity/roll: 0.4″/N・cm
• Lost motion: 10μm
• Backlash: 10μm
• Parallelism: 50μm
• Running parallelism: 10μm
• Pitching: 20″
• Yawing: 20″
• Sensor product number: Microphoto sensor: GP1S092HCPI (Sharp Corporation)
• Limit sensors: Is available (NORMAL CLOSE)
• Origin sensor: No
• Proximity origin sensor: No
• RoHS conform product
