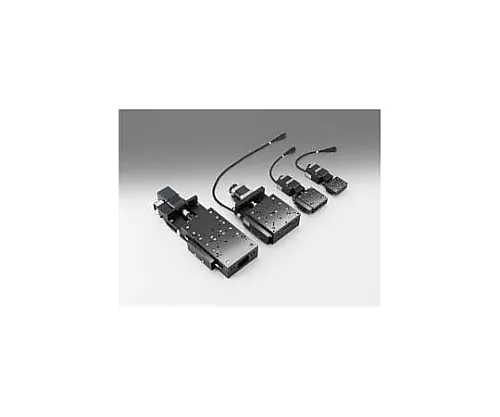

61-6985-41 Aluminum Crossed Roller Automated Stage 40 x 40mm Normal Type TAMM40-10C
Analyzer, Testing Equipment

61-6985-41 Aluminum Crossed Roller Automated Stage 40 x 40mm Normal Type TAMM40-10C

model: 61-6985-41
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6985-41Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6985-41
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A cross roller automatic stage that combines three elements: small, thin, and durable.
  • The cross roller guide (slipless structure) and special nut-shaped ball screw configuration provide a linear automatic stage that is thin and highly durable.
  • Since aluminum is ***d as the main material, the slim body is lightweight and compact, effectively saving space.
  • A spacer is required to secure the stage to the vibration isolation table.

Spec

  • [

    Common specification]
  • Motor type: 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
  • Motor product number: TAMM40-100C(R)/TAMM60-15C(R) : C9863-90215P (□28mm) , TAMM100-50C(R)/ 100C(R) : PK544NBW (□42mm)
  • Motor step angle: 0.72°
  • Sensor power voltage: DC5 - 24V±10%
  • Sensor power consumption: 60mA or less (20mA per 1 sensor)
  • Sensor control output: NPN open collector output 50mA
  • Sensor output logic: When shading: Output transistor OFF (non-conducting): Limit sensor, When shading: Output transistor ON (conducting): Origin sensor
  • Compatible driver: TAMM40-100C(R)/TAMM60-15C(R) : SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL, TAMM100-50C(R)/ 100C(R) : SG-5M, SG-55M, SG-514MSC, MC-7514PCL
  • Compatible controller: TAMM40-100C(R)/TAMM60-15C(R) : GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04, TAMM100-50C(R)/100C(R) : SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S
  • [Individual specification]
  • Type: Normal
  • Movement amount: 10mm
  • Table surface size: 40 x 40mm
  • Feed crew: Ball screw diameter φ4mm, Lead 1mm
  • Movement guide: Crossed roller
  • Stage material: Aluminum
  • Surface treatment: Black anodic oxide
  • Mass: 0.33kg
  • Resolution (full): 2μm/Pulse
  • Resolution (half): 1μm/pulse
  • Max speed: 10mm/sec
  • Positioning accuracy: 6μm
  • Repeatable positioning accuracy: 1μm
  • Withstand load: 29.4N (3.0kgf)
  • Moment stiffness: 1.5"/N・cm
  • Lost motion: 1μm
  • Backlash: 1μm
  • Parallelism: 30μm
  • Running parallelism: 10μm
  • Pitching: 25″
  • Yawing: 25″
  • Sensor product number: Microphoto sensor: GP1S097HCZ (Sharp Corporation), Limit sensor, Origin sensor
  • Limit sensors: Is available (NORMAL CLOSE)
  • Origin sensor: Is available (NORMAL OPEN)
  • Proximity origin sensor: No
  • RoHS conform product
