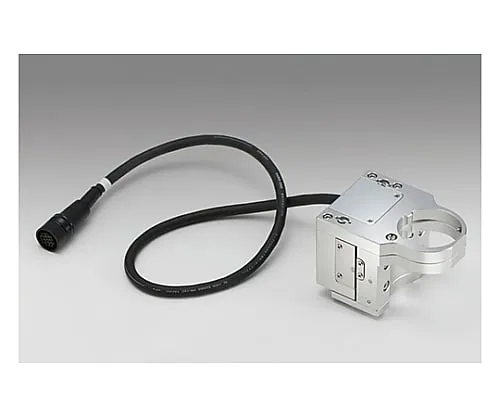

61-6985-15 Actuator for Objective Lens SGSP-OBL-3
Analyzer, Testing Equipment

61-6985-15 Actuator for Objective Lens SGSP-OBL-3

model: 61-6985-15
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6985-15Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6985-15
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Long stroke compatible stepping drive objective lens actuator.
  • Since it ***s a stepping motor, it can be connected to various controllers of the company.
  • Its small size and high resolution make it ideal for integration into microscope cylinders and autofocus systems.
  • Can be ***d with upright and inverted microscopes.
  • A special adapter (part number: OBL-ADP3-M ***) is available to suit the size of the microscope and objective lens screws of each manufacturer.
  • * A dedicated adapter is required for attaching to the microscope and objective lens.

Spec

  • [

    Common specification]
  • Motor type: 5 phase stepping motor 0.35A/phase (Oriental Motor (Co., Ltd))
  • Motor product number: PK513PA-C21 (□20mm)
  • Motor step angle: 0.72°
  • Sensor power voltage: DC+5V to +24V±10%
  • Sensor power consumption: 40mA or less (20mA per 1 sensor)
  • Sensor control output: NPN open collector output 50mA
  • Sensor output logic: When shading: Output transistor OFF (non-conducting)
  • Compatible driver: SG-5MA, SG-55MA, SG-514MSC
  • Compatible controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S
  • [Individual specification]
  • Movement amount: 3mm
  • Table surface size: Adapter installation
  • Feed crew: Precision grinding screw diameter φ6mm, Lead 0.5mm
  • Movement guide: Cross roller guide
  • Stage top side material: Aluminum
  • Surface treatment: White anodic oxide
  • Mass: 0.4kg
  • Resolution (full): 1μm/pulse
  • Resolution (half): 0.5μm/Pulse
  • Max speed: 1mm/sec
  • Positioning accuracy: 5μm
  • Repeatable positioning accuracy: 2μm
  • Withstand load: 4.9N (0.5kgf)
  • Moment stiffness: ?
  • Lost motion: 2μm
  • Backlash: 1μm
  • Parallelism: ?
  • Running parallelism: 2μm
  • Pitching: 15″
  • Yawing: 15″
  • Sensor product number: Photo micro sensor: GP1S092HCPI (Sharp Corporation)
  • Limit sensors: Is available (NORMAL CLOSE)
  • Origin sensor: No
  • Proximity origin sensor: No
  • RoHS conform product
