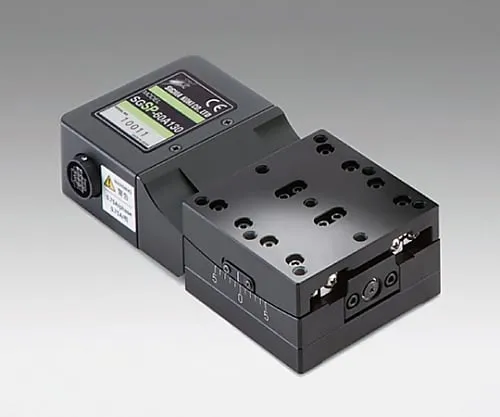

61-6985-10 Small Automatic Gonio Stage Rotation Center Height 75mm Stage Height 35mm SGSP-60A75
Product Description
Product Model: 61-6985-10Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6985-10
Product Brand: SIGMAKOKI CO., LTD.
Features
- Automatic gonio stage driven by stepping motor using cross roller guide.
- High rigidity gonio stage with excellent abrasion resistance cross roller guide.
- The height of the center of rotation from the table surface is 75 mm/100 mm/130 mm and can be selected according to the application.
- After purchasing 2 axes of the alpha axis, when assembling them into the alpha beta axis, a separate cost (¥10,000) will be charged for assembly adjustment and performance inspection.
Spec
-
[
Common specification]
- Motor type: 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
- Motor product number: C9863-90215P (□28mm)
- Motor step angle: 0.72°
- Sensor power voltage: DC5 - 24V±10%
- Sensor power consumption: 40mA or less (20mA or less per 1 sensor)
- Sensor control output: NPN open collector output DC 30V or less 50mA or less
- Sensor output logic: When shading > Output transistor OFF (non-conducting)
- Compatible driver: SG-5M, SG-55M, SG-514MSC, SG-5151, KR-525M
- Compatible controller: PAT-001, GSC-01, SHOT-102, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S
- [Individual specification]
- Angle range: ±7°
- Table surface size: 60 x 60mm
- Movement guide: Crossed roller
- Moving mechanism: Worm and worm wheel
- Stage material: Aluminum
- Surface treatment: Black anodic oxide
- Mass: 0.65kg
- Stage height: 35mm
- Rotation center height: 75mm
- Rotation center deflection accuracy: φ0.05mm
- Resolution (full): Approximately 0.002°/Pulse
- Resolution (half): Approximately 0.001°/Pulse
- Max speed: 6°/sec
- Repeatable positioning accuracy: ±0.004°
- Withstand load: 24.5N (2.5kgf)
- Moment stiffness: 1″/N・cm
- Lost motion: 0.02°
- Sensor product number: Microphoto sensor: GP1S092HCPI (Sharp Corporation)
- Limit sensors: Is available (NORMAL CLOSE)
- Origin sensor: No
- Proximity origin sensor: No
- RoHS conform product
