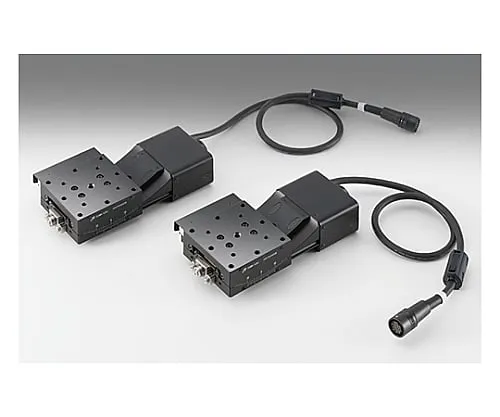

Spec

• [

  Common specification]

• Motor type: 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
• Motor product number: PK523HPB-C12 (□28mm)
• Motor step angle: 0.72°
• Sensor power voltage: DC5 - 24V±10%
• Sensor power consumption: 60mA or less (20mA per 1 sensor)
• Sensor control output: NPN open collector output 50mA
• Sensor output logic: When shading: Output transistor OFF (non-conducting): Limit sensor, When shading: Output transistor ON (conducting): Origin sensor
• Compatible driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
• Compatible controller: GSC-01, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
• [Individual specification]
• Type: Normal
• Movement amount: ±14°
• Table surface size: 60 x 60mm
• Transfer mechanism (reduction ratio): Worm gear (1: 246)
• Movement guide: Ball guide
• Stage material: SUS440C quench hardened
• Surface treatment: Super black chrome
• Mass: 0.85kg
• Stage height: 25mm
• Rotation center height: 60±0.1mm
• Rotation center deflection accuracy: within φ0.01mm
• Resolution (full): Approximately 0.00293°/Pulse
• Resolution (half): Approximately 0.00146°/Pulse
• Max speed: 10°/sec
• Repeatable positioning accuracy: ±0.004°
• Withstand load: 29.4N (3.0kgf)
• Moment rigidity/roll: 0.3″/N・cm
• Moment rigidity/yaw: 0.3″/N・cm
• Lost motion: 0.02°
• Sensor product number: Microphoto sensor: GP1S092HCZ0F (Sharp Corporation): Limit sensor, Origin sensor
• Limit sensors: Is available (NORMAL CLOSE)
• Origin sensor: Is available (NORMAL OPEN)
• CE conform product
• RoHS conform product
