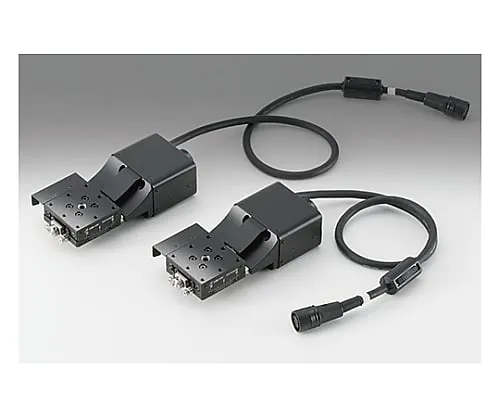

61-6984-39 Guide Integral Gonio Stage 40 x 40mm Movement Amount ±5° OSMS-40A60
Analyzer, Testing Equipment

61-6984-39 Guide Integral Gonio Stage 40 x 40mm Movement Amount ±5° OSMS-40A60

model: 61-6984-39
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6984-39Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6984-39
Product Brand: SIGMAKOKI CO., LTD.

Features

  • High-precision automatic gonio stage with direct guide processing on the quenched stainless steel stage body and moving table.
  • Smooth movement makes it ideal for areas that require frequent angular adjustments.
  • It is an automatic stage with excellent cost performance that reduces the number of parts and assembly man-hours by the integrated structure with a guide on the main body.
  • Attachment pins (accessories) are ideal for mounting on the αβ axis and positioning when attached to various devices and equipment.
  • Manual type (GOHT-40) is also available.

Spec

  • [

    Common specification]
  • Motor type: 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
  • Motor product number: PK523HPB-C12 (□28mm)
  • Motor step angle: 0.72°
  • Sensor power voltage: DC5 - 24V±10%
  • Sensor power consumption: 60mA or less (20mA or less per 1 sensor)
  • Sensor control output: NPN open collector output DC 30V or less 50mA or less
  • Sensor output logic: When shading: Output transistor OFF (non-conducting)
  • Compatible driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
  • Compatible controller: GSC-01, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
  • [Individual specification]
  • Type: Normal
  • Movement amount: ±5°
  • Table surface size: 40 x 40mm
  • Transfer mechanism (reduction ratio): Worm gear (1: 332)
  • Movement guide: Ball guide
  • Stage material: SUS440C quench hardened
  • Surface treatment: Super black chrome
  • Mass: 0.4kg
  • Stage height: 15mm
  • Rotation center height: 60±0.1mm
  • Rotation center deflection accuracy: within φ0.01mm
  • Resolution (full): Approximately 0.00217°/Pulse
  • Resolution (half): Approximately 0.00108°/Pulse
  • Max speed: 10°/sec
  • Repeatable positioning accuracy: ±0.004°
  • Withstand load: 19.6N (2.0kgf)
  • Moment rigidity/roll: 0.6″/N・cm
  • Moment rigidity/yaw: 0.6″/N・cm
  • Lost motion: 0.02°
  • Sensor product number: Microphoto sensor: GP1S092HCPIF (Sharp Corporation): Limit sensor
  • Limit sensors: Is available (NORMAL CLOSE)
  • Origin sensor: No
  • CE conform product
  • RoHS conform product
