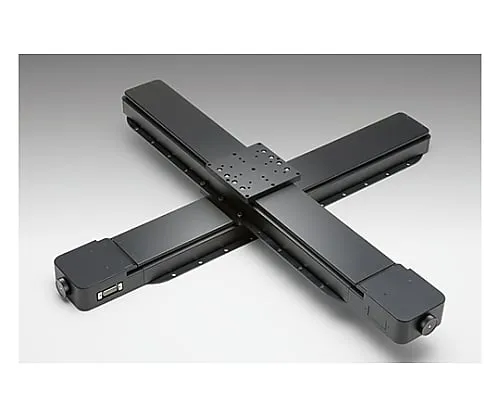

61-6984-27 High Rigidity, Precision Type Automated Stage Movement Amount 300mm 120 x 120mm OSMS33-300(XY) OSMS33-300XY
Product Description
Product Model: 61-6984-27Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6984-27
Product Brand: SIGMAKOKI CO., LTD.
Features
- This stepping motor drive stage is ideal for positioning measuring equipment and inspection equipment requiring high rigidity and accuracy.
- The shape of the rail is U-shaped, lightweight, and has a high rigidity specification with minimal deflection.
Spec
-
[
Common specification]
- Motor type: 5 phase stepping motor 0.75A/phase (Tamagawa Seiki (Co., Ltd.))
- Motor product number: TS3667N43E967 (□42mm)
- Motor step angle: 0.72°
- Sensor power voltage: DC5 - 24V±10%
- Sensor power consumption: 80mA or less (20mA or less per 1 sensor)
- Sensor control output: NPN open collector output DC 30V or less 50mA or less
- Sensor output logic: When shading: Output transistor OFF (non-conducting)
- Compatible driver: SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible controller: SHOT-702, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
- [Individual specification]
- Movement amount: 300mm
- Table surface size: 120 x 120mm
- Feed crew: Ball screw diameter φ10mm, Lead 10mm
- Movement guide: Outer rail structure
- Stage top side material: Aluminum
- Surface treatment: Black anodic oxide
- Mass: 14.0kg
- Resolution (full): 20μm/Pulse
- Resolution (half): 10μm/Pulse
- Max speed: 80mm/sec
- Withstand load: 156N (16.0kgf)
- Backlash: 3μm
- Orthogonality of motion: 5μm
- Sensor product number: Microphoto sensor: GP1S092HCPIF (Sharp Corporation)
- Limit sensors: Is available (NORMAL CLOSE)
- Origin sensor: Is available
- Proximity origin sensor: No
- CE conform product
- RoHS conform product
