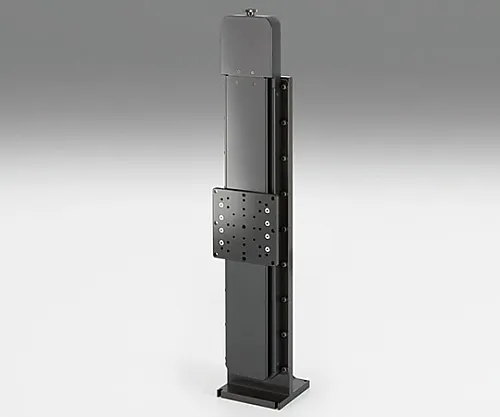

Spec

• [

  Common specification]

• Motor type: 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
• Motor product number: PK525HPB-C4 (□28mm)
• Motor step angle: 0.72°
• Sensor power voltage: DC5 - 24V±10%
• Sensor power consumption: 80mA or less (20mA or less per 1 sensor)
• Sensor control output: NPN open collector output DC 30V or less 50mA or less
• Sensor output logic: When shading: Output transistor OFF (non-conducting)
• Compatible driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
• Compatible controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
• [Individual specification]
• Movement amount: 50mm
• Table surface size: 100 x 100mm
• Feed crew: Ball screw diameter φ8mm, Lead 2mm
• Movement guide: Outer rail structure
• Stage top side material: Aluminum
• Surface treatment: Black anodic oxide
• Mass: 4.4kg
• Resolution (full): 4μm/Pulse
• Resolution (half): 2μm/Pulse
• Max speed: 10mm/sec
• Positioning accuracy: 15μm
• Repeatable positioning accuracy: 3μm
• Withstand load: 39.2N (4.0kgf)
• Moment rigidity/pitch: 0.4″/N・cm
• Moment rigidity/yaw: 0.15″/N・cm
• Moment rigidity/roll: 0.20″/N・cm
• Lost motion: 3μm
• Backlash: 3μm
• Verticality of motion: 30μm
• Pitching: 50″
• Yawing: 20″
• Sensor product number: Microphoto sensor: GP1S092HCPIF (Sharp Corporation)
• Limit sensors: Is available (NORMAL CLOSE)
• Origin sensor: Is available
• Proximity origin sensor: Is available
• CE conform product
• RoHS conform product
