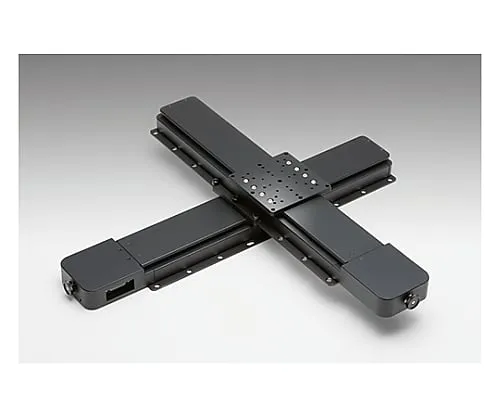

61-6983-96 High Rigidity, Precision Type Automated Stage Movement Amount 50mm 100 x 100mm OSMS26-50(XY) OSMS26-50XY
Product Description
Product Model: 61-6983-96Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6983-96
Product Brand: SIGMAKOKI CO., LTD.
Features
- This stepping motor drive stage is ideal for positioning measuring equipment and inspection equipment requiring high rigidity and accuracy.
- The shape of the rail is U-shaped, lightweight, and has a high rigidity specification with minimal deflection.
Spec
-
[
Common specification]
- Motor type: 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
- Motor product number: PK525HPB-C4 (□28mm)
- Motor step angle: 0.72°
- Sensor power voltage: DC5 - 24V±10%
- Sensor power consumption: 80mA or less (20mA or less per 1 sensor)
- Sensor control output: NPN open collector output DC 30V or less 50mA or less
- Sensor output logic: When shading: Output transistor OFF (non-conducting)
- Compatible driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
- [Individual specification]
- Movement amount: 50mm
- Table surface size: 100 x 100mm
- Feed crew: Ball screw diameter φ8mm, Lead 2mm
- Movement guide: Outer rail structure
- Stage top side material: Aluminum
- Surface treatment: Black anodic oxide
- Mass: 4.4kg
- Resolution (full): 4μm/Pulse
- Resolution (half): 2μm/Pulse
- Max speed: 40mm/sec
- Withstand load: 98N (10.0kgf)
- Backlash: 3μm
- Orthogonality of motion: 5μm
- Sensor product number: Microphoto sensor: GP1S092HCPIF (Sharp Corporation)
- Limit sensors: Is available (NORMAL CLOSE)
- Origin sensor: Is available
- Proximity origin sensor: Is available
- CE conform product
- RoHS conform product
