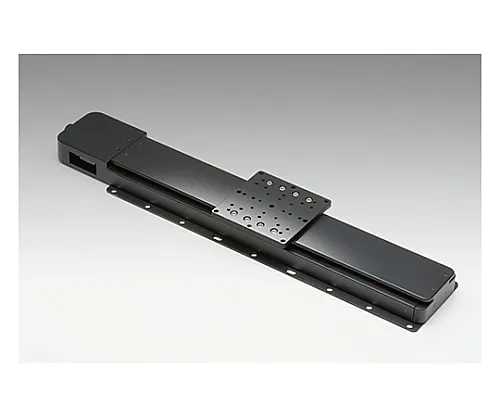

61-6983-84 High Rigidity, Precision Type Automated Stage Movement Amount 50mm 100 x 100mm OSMS26-50(X) OSMS26-50X
Analyzer, Testing Equipment

61-6983-84 High Rigidity, Precision Type Automated Stage Movement Amount 50mm 100 x 100mm OSMS26-50(X) OSMS26-50X

model: 61-6983-84
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6983-84Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6983-84
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This stepping motor drive stage is ideal for positioning measuring equipment and inspection equipment requiring high rigidity and accuracy.
  • The shape of the rail is U-shaped, lightweight, and has a high rigidity specification with minimal deflection.

Spec

  • [

    Common specification]
  • Motor type: 5 phase stepping motor 0.75A/phase (Oriental Motor (Co., Ltd))
  • Motor product number: PK525HPB-C4 (□28mm)
  • Motor step angle: 0.72°
  • Sensor power voltage: DC5 - 24V±10%
  • Sensor power consumption: 80mA or less (20mA or less per 1 sensor)
  • Sensor control output: NPN open collector output DC 30V or less 50mA or less
  • Sensor output logic: When shading: Output transistor OFF (non-conducting)
  • Compatible driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
  • Compatible controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
  • [Individual specification]
  • Movement amount: 50mm
  • Table surface size: 100 x 100mm
  • Feed crew: Ball screw diameter φ8mm, Lead 2mm
  • Movement guide: Outer rail structure
  • Stage top side material: Aluminum
  • Surface treatment: Black anodic oxide
  • Mass: 2.2kg
  • Resolution (full): 4μm/Pulse
  • Resolution (half): 2μm/Pulse
  • Max speed: 40mm/sec
  • Positioning accuracy: 5μm
  • Repeatable positioning accuracy: 3μm
  • Withstand load: 117N (12.0kgf)
  • Moment rigidity/pitch: 0.23″/N・cm
  • Moment rigidity/yaw: 0.12″/N・cm
  • Moment rigidity/roll: 0.2″/N・cm
  • Lost motion: 3μm
  • Backlash: 3μm
  • Parallelism: 50μm
  • Running parallelism: 10μm
  • Pitching: 25″
  • Yawing: 20″
  • Sensor product number: Microphoto sensor: GP1S092HCPIF (Sharp Corporation)
  • Limit sensors: Is available (NORMAL CLOSE)
  • Origin sensor: Is available
  • Proximity origin sensor: Is available
  • CE conform product
  • RoHS conform product
