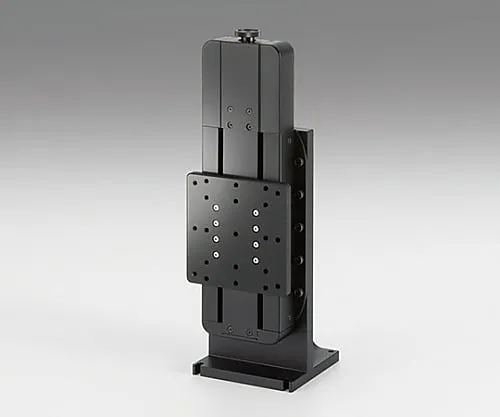

61-6983-78 High Rigidity, Precision Type Automated Stage Movement Amount 35mm 85 x 85mm OSMS20-35(Z) OSMS20-35Z
Analyzer, Testing Equipment

61-6983-78 High Rigidity, Precision Type Automated Stage Movement Amount 35mm 85 x 85mm OSMS20-35(Z) OSMS20-35Z

model: 61-6983-78
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6983-78Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6983-78
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This stepping motor drive stage is ideal for positioning measuring equipment and inspection equipment requiring high rigidity and accuracy.
  • The shape of the rail is U-shaped, lightweight, and has a high rigidity specification with minimal deflection.

Spec

  • [

    Common specification]
  • Motor type: 5 phase stepping motor 0.75A/phase (Tamagawa Seiki (Co., Ltd.))
  • Motor product number: TS3664N4E10 (□24mm)
  • Motor step angle: 0.72°
  • Sensor power voltage: DC5 - 24V±10%
  • Sensor power consumption: 60mA or less (20mA or less per 1 sensor)
  • Sensor control output: NPN open collector output DC 30V or less 50mA or less
  • Sensor output logic: When shading: Output transistor OFF (non-conducting)
  • Compatible driver: ①: SG-5M, SG-5MA, ②: SG-55M, SG-55MA, SG-514MSC, SG-5151, KR-525M, MC-7514PCL
  • Compatible controller: ①: GSC-01, GSC-02, ②: SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
  • [Individual specification]
  • Movement amount: 35mm
  • Table surface size: 85 x 85mm
  • Feed crew: Ball screw diameter φ6mm, Lead 1mm
  • Movement guide: Outer rail structure
  • Stage top side material: Aluminum
  • Surface treatment: Black anodic oxide
  • Mass: 2.3kg
  • Resolution (full): 2μm/Pulse
  • Resolution (half): 1μm/pulse
  • Max speed: 5mm/sec
  • Positioning accuracy: 10μm
  • Repeatable positioning accuracy: 3μm
  • Withstand load: 29.4N (3.0kgf) when ***d in the controller ②.
  • Moment rigidity/pitch: 0.8″/N・cm
  • Moment rigidity/yaw: 0.5″/N・cm
  • Moment rigidity/roll: 0.7″/N・cm
  • Lost motion: 3μm
  • Backlash: 3μm
  • Verticality of motion: 25μm
  • Pitching: 45″
  • Yawing: 20″
  • Sensor product number: Microphoto sensor: GP1S092HCPIF (Sharp Corporation)
  • Limit sensors: Is available (NORMAL CLOSE)
  • Origin sensor: Is available
  • Proximity origin sensor: No
  • CE conform product
  • RoHS conform product
