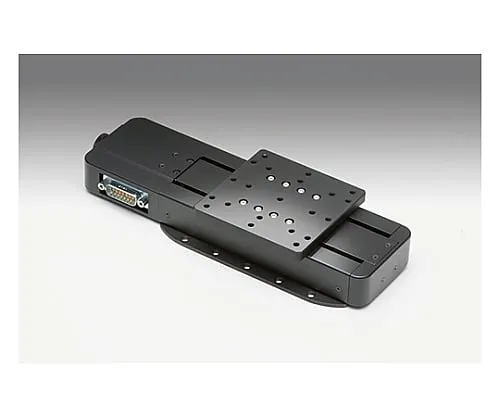

61-6983-66 High Rigidity, Precision Type Automated Stage Movement Amount 35mm 85 x 85mm OSMS20-35(X) OSMS20-35X
Product Description
Product Model: 61-6983-66Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6983-66
Product Brand: SIGMAKOKI CO., LTD.
Features
- This stepping motor drive stage is ideal for positioning measuring equipment and inspection equipment requiring high rigidity and accuracy.
- The shape of the rail is U-shaped, lightweight, and has a high rigidity specification with minimal deflection.
Spec
-
[
Common specification]
- Motor type: 5 phase stepping motor 0.75A/phase (Tamagawa Seiki (Co., Ltd.))
- Motor product number: TS3664N4E10 (□24mm)
- Motor step angle: 0.72°
- Sensor power voltage: DC5 - 24V±10%
- Sensor power consumption: 60mA or less (20mA or less per 1 sensor)
- Sensor control output: NPN open collector output DC 30V or less 50mA or less
- Sensor output logic: When shading: Output transistor OFF (non-conducting)
- Compatible driver: SG-5M, SG-5MA, SG-55M, SG-55MA, SG-514MSC, MC-7514PCL
- Compatible controller: GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M・HIT-S, PGC-04
- [Individual specification]
- Movement amount: 35mm
- Table surface size: 85 x 85mm
- Feed crew: Ball screw diameter φ6mm, Lead 1mm
- Movement guide: Outer rail structure
- Stage top side material: Aluminum
- Surface treatment: Black anodic oxide
- Mass: 1.1kg
- Resolution (full): 2μm/Pulse
- Resolution (half): 1μm/pulse
- Max speed: 25mm/sec
- Positioning accuracy: 5μm
- Repeatable positioning accuracy: 3μm
- Withstand load: 78.4N (8.0kgf)
- Moment rigidity/pitch: 0.4″/N・cm
- Moment rigidity/yaw: 0.25″/N・cm
- Moment rigidity/roll: 0.25″/N・cm
- Lost motion: 3μm
- Backlash: 3μm
- Parallelism: 30μm
- Running parallelism: 10μm
- Pitching: 30″
- Yawing: 20″
- Sensor product number: Microphoto sensor: GP1S092HCPIF (Sharp Corporation)
- Limit sensors: Is available (NORMAL CLOSE)
- Origin sensor: Is available
- Proximity origin sensor: No
- CE conform product
- RoHS conform product
