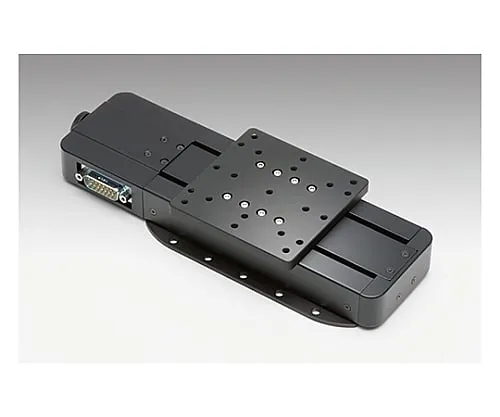

61-6983-48 Built-In Compact Scale Automated Stage 85 x 85mm OSMS(CS)20-35(X) OSMSCS20-35X
Product Description
Product Model: 61-6983-48Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6983-48
Product Brand: SIGMAKOKI CO., LTD.
Features
- By using dedicated stage controllers (SHOT-302 GS/304 GS, HIT-M, HIT-S), a highly accurate and reliable full closed loop system can be realized.
- Structures resistant to moment and combined loads are less susceptible to pitching, rolling, and yawing, and can be positioned with high rigidity and accuracy.
- Although a compact scale is built in, the installation space does not change from the OSMS series when the same amount of movement is ***d.
Spec
-
[
Common specification]
- Motor type: 5 phase stepping motor 0.75A/phase (Tamagawa Seiki (Co., Ltd.))
- Motor product number: TS3664N4E10 (□24mm)
- Motor step angle: 0.72°
- Sensor power voltage: DC5 - 24V±10%
- Sensor power consumption: 60mA or less (20mA or less per 1 sensor)
- Sensor control output: NPN open collector output DC 30V or less 50mA or less
- Sensor output logic: When shading: Output transistor OFF (non-conducting)
- Power voltage/Consumption current: DC5V±5％ / 50mA
- Drive cable: D15D15A-CA
- Scale cable: GSEF-CA-3
- Compatible driver: -
- Compatible controller: SHOT-302GS, SHOT-304GS, HIT-M, HIT-S
- [Individual specification]
- Movement amount: 35mm
- Table surface size: 85 x 85mm
- Feed crew: Ball screw diameter φ6mm, Lead 1mm
- Movement guide: Outer rail structure
- Stage top side material: Aluminum
- Surface treatment: Black anodic oxide
- Mass: 1.4kg
- Resolution (full): 2μm/Pulse
- Resolution (half): 1μm/pulse
- Max speed: 25mm/sec
- Positioning accuracy: 5μm
- Repeatable positioning accuracy: 2μm
- Withstand load: 78.4N (8.0kgf)
- Moment rigidity/pitch: 0.4″/N・cm
- Moment rigidity/yaw: 0.25″/N・cm
- Moment rigidity/roll: 0.25″/N・cm
- Lost motion: 3μm
- Backlash: 3μm
- Parallelism: 30μm
- Running parallelism: 10μm
- Pitching: 30″
- Yawing: 20″
- Sensor product number: Microphoto sensor: GP1S092HCPIF (Sharp Corporation)
- Limit sensors: Is available (NORMAL CLOSE)
- Origin sensor: Is available
- Proximity origin sensor: No
- Scale head: 0.5μm
- CE conform product
- RoHS conform product
