61-6983-17 Joy Stick Terminal SJT-02
Analyzer, Testing Equipment

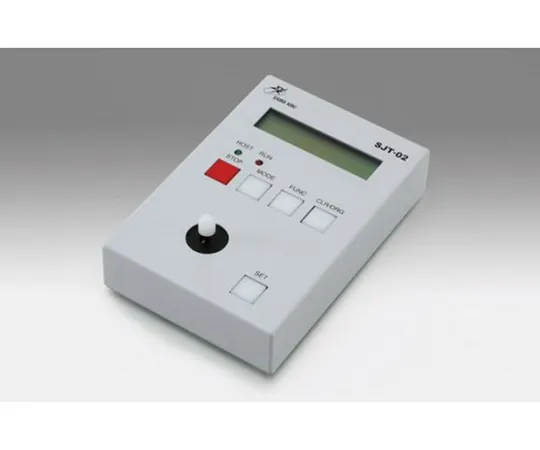

61-6983-17 Joy Stick Terminal SJT-02

model: 61-6983-17
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6983-17Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6983-17
Product Brand: SIGMAKOKI CO., LTD.

Features

  • 2-axis stage controller with built-in 5-phase stepping motor driver.
  • External control via the RS232C interface or manual operation and program control via the dedicated handy controller (SJT-02) is possible.
  • * The power supply specification is DC+24 V 2 A.
  • * PAT-001-POW1 (AC Adapter) must be purchased or prepared by the customer.

Spec

  • [<2 axis stage controller> Common specification]
  • Major function controller function: ○
  • Major function number of control axes: 2 axes
  • Major function internal program control: △
  • Major function feedback control: -
  • Major function circular interpolation control: -
  • Major function straight line interpolation control: -
  • Major function driver function: Standard
  • Major function microstep (maximum division counts): 2 division (half step only)
  • Major function drive current: 0.3 - 0.8A/phase
  • General specification power voltage: DC24V 2A
  • General specification power consumption: 48VA
  • General specification operation temperature: 5 - 40℃
  • General specification storage temperature: -20 - 60℃
  • General specification ambient humidity: 20 - 80%RH
  • General specification outer dimensions (W x H x D): 180 x 40 x 125mm
  • General specification weight: 0.7kg
  • Interface GP-IB: -
  • Interface RS232C: ○
  • Interface USB: -
  • Interface ethernet: -
  • Option CJ-200A: -
  • Option JS-300: -
  • Option JB-400: -
  • Option SJT-02: ○
  • Performance specification coordinate display range: -
  • Performance specification maximum setting movement amount: 16777214
  • Performance specification maximum drive speed: 20,000pps
  • Performance specification minimum drive speed: 1pps
  • Performance specification acceleration/deceleration time: 0 - 1,000ms
  • I/O specification origin sensor: ○
  • I/O specification proximity sensor: ○
  • I/O specification CW (+) limit: ○
  • I/O specification CCW (?) limit: ○
  • I/O specification general-purpose input: -
  • I/O specification general-purpose output: -
  • I/O specification control input: -
  • I/O Specification control output: -
  • I/O Specification trigger Output: -
  • Control command return to mechanical origin: ○
  • Control command logical origin setting: ○
  • Control command relative position drive: ○
  • Control command absolute position drive: -
  • Control command jog operation: ○
  • Control command position specifications: -
  • Control command circular interpolation control: -
  • Control command straight line interpolation control: -
  • Control command drive: ○
  • Control command decelerating stop: ○
  • Control command emergency stop: ○
  • Control command speed settings: ○
  • Control command motor free/hold: ○
  • Control command port input: -
  • Control command port output: -
  • [Individual specification]
  • Product name: Joy stick terminal
  • Type: Joy stick
  • Power supply: Supplied from the controller
  • Display: LCD (16 digits x 2 lines)
  • Outer diameter dimensions: W94 x H30 x D140mm
  • Mass: 0.45kg
  • CE conform product
