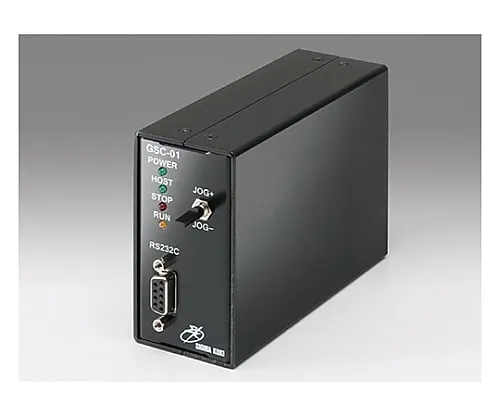

61-6983-14 1 Axis Stage Controller GSC-01
Product Description
Product Model: 61-6983-14Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6983-14
Product Brand: SIGMAKOKI CO., LTD.
Features
- 1-axis stage controller with built-in 5-phase stepping motor driver.
- External control via the RS232C interface, front panel jog switch, and external I/O jog drive are possible.
- * The power supply specification is DC+24 V 2 A.
- * PAT-001-POW1 (AC Adapter) must be purchased or prepared by the customer.
Spec
- [<1 axis stage controller> Common specification]
- Major function controller function: ○
- Major function number of control axes: 1 axis
- Major function internal program control: -
- Major function feedback control: -
- Major function circular interpolation control: -
- Major function straight line interpolation control: -
- Major function driver function: Standard
- Major function microstep (maximum division counts): 2 division
- Major function drive current: 0.3 - 0.8A/phase
- General specification power voltage: DC24V 1.3A
- General specification power consumption: 32VA
- General specification operation temperature: 5 - 40℃
- General specification storage temperature: ー20 - 60℃
- General specification ambient humidity: 20 - 80％RH
- General specification outer dimensions (W x H x D): 47 x 90 x 125mm
- General specification weight: 0.4kg
- Interface GP-IB: -
- Interface RS232C: ○
- Interface USB: -
- Interface ethernet: -
- Performance specification coordinate display range: -
- Performance specification maximum setting movement amount: 16777215
- Performance specification maximum drive speed: 20,000pps
- Performance specification minimum drive speed: 100pps
- Performance specification acceleration/deceleration time: 0 - 1,000ms
- I/O specification origin sensor: -
- I/O specification proximity sensor: -
- I/O specification CW (+) limit: ○
- I/O specification CCW (?) limit: ○
- I/O specification general-purpose input: 4 points
- I/O specification general-purpose output: 4 points
- I/O specification control input: 3 points
- I/O Specification control output: -
- I/O Specification trigger Output: -
- Control command return to mechanical origin: ○
- Control command logical origin setting: ○
- Control command relative position drive: ○
- Control command absolute position drive: ○
- Control command jog operation: ○
- Control command position specifications: -
- Control command circular interpolation control: -
- Control command straight line interpolation control: -
- Control command drive: ○
- Control command decelerating stop: ○
- Control command emergency stop: ○
- Control command speed settings: ○
- Control command motor free/hold: ○
- Control command port input: ○
- Control command port output: ○
- Control command origin offset settings: ○
- Control command jog operation speed settings: ○
- [Individual specification]
- Product name: 1 axis stage controller
- CE conform product
