Spec

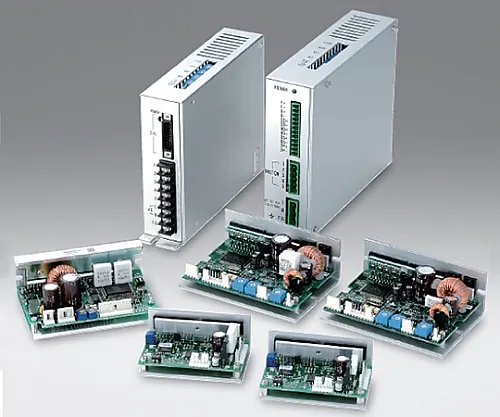

• Product name: Small driver
• Drive motor: 5 phase stepping motor
• Drive system: Bipolar pentagon constant current drive method
• Drive cuurent: 0.25 - 0.85A/phase
• Exciting method: Full/half step
• Division counts: 2 types (1, 2)
• Input signal: 1 clock input method, 2 clock input method
• Input logic: Photo coupler input
• Maximum response frequency: 50kpps
• Automatic current down OFF input: No
• Motor excitation OFF input: Is available
• Microstep select Input: No
• Origin excitation timing output: No
• Input power: DC20 - 40V 1.5A Max
• Operating temperature range: 0 - 40℃
• Outer dimensions: W77 x H32 x D45mm
• Mass: 0.1kg
