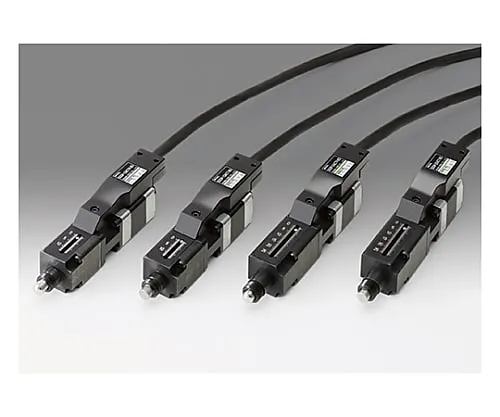

61-6982-57 Stepping Motor Drive Small Actuator Tip Shape Flat Type 13mm SGSP-13ACT-B0
Product Description
Product Model: 61-6982-57Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6982-57
Product Brand: SIGMAKOKI CO., LTD.
Features
- This is a low-cost actuator that combines a compact high-performance stepping motor and precision grinding screws.
- It can be automated by replacing the micrometer heads on the company's manual stages and mirror holders.
- It can be driven by the company's stepping motor controller.
- Dep***ing on the application, you can choose from 2 types of displacement: 13 mm and 25 mm.
- For controllers, we recomm*** a 1-axis controller (GSC-01) and a 2-axis stage controller (GSC-02).
Spec
-
[
Common specification]
- 1 Amount of pulse transfer (full step/half step): 1μm/0.5μm
- Type: 5 phase stepping motor 0.35A/phase (Oriental Motor (Co., Ltd))
- Motor product number: PK513PB-C9 (□20mm)
- Feed crew: Precision grinding screw φ4mm, Lead 0.5mm
- [Individual specification]
- Tip shape: Flat-type
- Movement amount: 13mm
- Maximum movement amount: 2mm/sec
- Positioning accuracy: 0.01mm
- Repeat positioning accuracy: 0.003mm
- Lost motion: 0.005mm
- Allowable load (static load): 29.4N (3kgf)
- Mass: 0.16kg
- CE conform product
