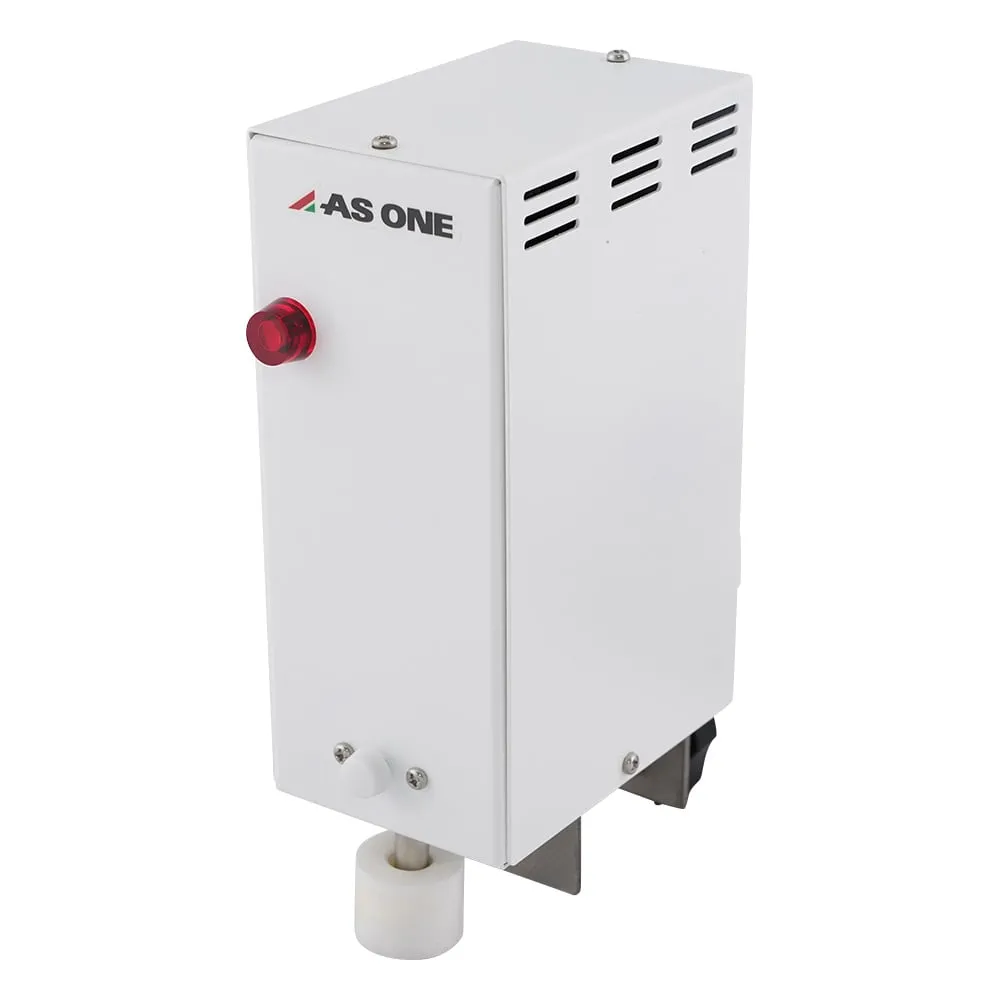

4-3759-01 Multi-float Switch POF-15A
Product Description
Product Model: 4-3759-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-3759-01
Product Brand: AS ONE Corporation
Features
- When the water level drops below the set level, the power of the connected device is automatically turned off (normal operation) * To prevent the device from running dry.
- When the water level rises to the set position, the power of the connected device is automatically turned off (reverse operation) * To prevent flooding.
- The LED lights when the power is turned off.
- Normal operation and reverse operation can be switched.
- Connect to a constant temperature unit.
Spec
- Size (mm): 60 x 96 x 151 (excluding protrusions)
- Weight (kg): approximately 0.85
- Number of pieces: 1
- Material: Steel (white paint)
- Water level detection range: 55 ~ 130 mm from the edge of the water tank
- Control method: ON/OFF by float switch
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 3 m (with 3P ground)
- Control output: 100 VAC 15 A
- Available water temperature: 90 degrees C
- Mountable water tank: Side wall thickness 30 mm or less
- Accessories: Mounting scratch protection plate x 1
