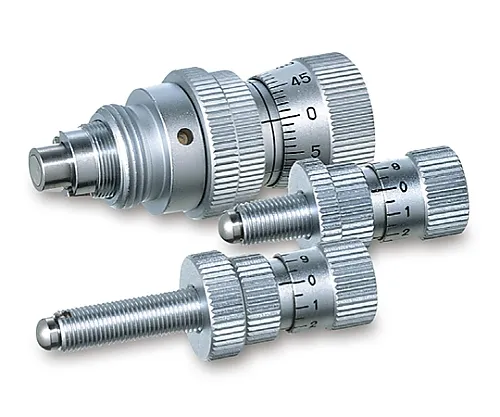

61-6982-14 Small Differential Micrometer Head 0 - 5mm SHSP-9
Analyzer, Testing Equipment

61-6982-14 Small Differential Micrometer Head 0 - 5mm SHSP-9

model: 61-6982-14
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6982-14Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6982-14
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Compact differential micrometer head with up to 19 mm of flutter and high resolution adjustment.
  • The differential mechanism of the double spindle allows smooth adjustment of rough and fine motions.
  • * Note that there is a scale in the fine moving part, but there is no scale in the coarse moving part.
  • * When replacing the micrometer head, the movement range may be narrowed or interference with the mounting components may occur dep***ing on the type of stage.
  • * When replacing the micrometer head, it is recomm***ed to check with the company.

Spec

  • Flutter movement amount: 0 - 5mm
  • Tremor movement amount: 0 - 0.25mm
  • Tremor minimum reading: 0.0025mm
  • Flutter movement amount/1 rotation: 0.5mm
  • Tremor movement amount/1 rotation: 0.05mm
  • Allowable load (static load): 19.6N (2kgf)
  • Mass: 0.01kg
  • RoHS conform product
