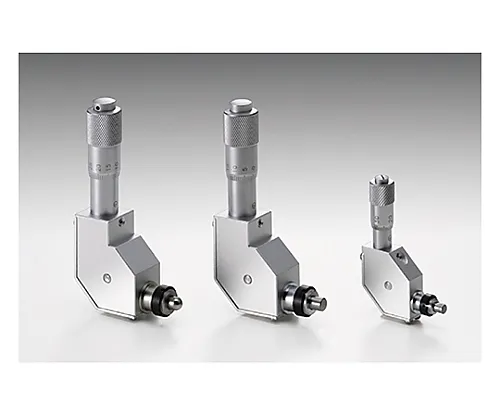

61-6982-10 Folded Type Micrometer Head 0 - 6.5mm Tip Shape Flat Type MDC-6.5
Analyzer, Testing Equipment

61-6982-10 Folded Type Micrometer Head 0 - 6.5mm Tip Shape Flat Type MDC-6.5

model: 61-6982-10
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6982-10Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6982-10
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is an original product that is compatible with the installation part of the micrometer head ***d for the manual stage of the company.
  • Since the operation section can be consolidated in one direction, it is effective for work efficiency beca*** it is easy to operate in places with built-in equipment or restrictions.
  • Compatible with product installation instructions using the micrometer head of the company (MDC-6.5⇔SHT1-6.5, MDC-13⇔SHS2-13).
  • After loosening the screws of the folded micrometer head, it is possible to rotate it and fix it at any position.
  • Dep***ing on the situation, it can be ***d in the most convenient position.
  • There are R type and flat type tip shape.
  • Since the principle of leverage is applied, the feed amount relative to the scale of the micrometer head is 1:1 near the center, but the lateral deviation of the lever part occurs at the periphery, so *** the scale as a guide.
  • * Dep***ing on the type and direction of the stage on which the folding micrometer head is installed, the movement range may be narrowed or interference with the installation parts may occur.
  • * It is recomm***ed to check in advance when replacing with a micrometer head.
  • * MDC-6.5/6.5R ***s dedicated nuts.
  • * Nut turning MNS-12.5-14.5 cannot be ***d.
  • * If you install or tighten the MDC-13/13R by yourself, a special tool (MNS -12.5-14.5) is provided.

Spec

  • Movement amount: 0 - 6.5mm
  • Minimum reading: 0.01mm
  • Movement amount/1 rotation: 0.5mm
  • Allowable load (static load): 29.4N (3kgf)
  • Tip shape: Flat-type
  • Mass: 0.03kg
  • RoHS conform product
