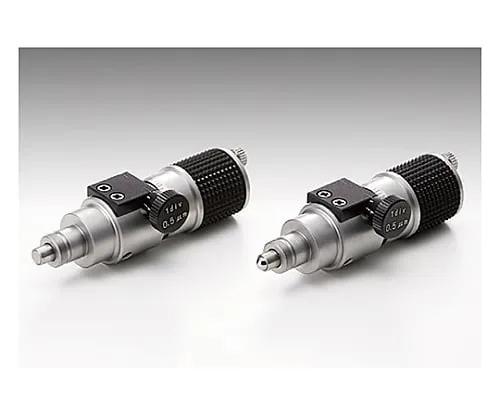

61-6982-08 Warm Type Flutter/Tremor Micrometer Head Tip Shape Flat Type WGP-13
Product Description
Product Model: 61-6982-08Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6982-08
Product Brand: SIGMAKOKI CO., LTD.
Features
- This is an original product that can be operated with coarse and fine movement over the entire movement amount (13 mm) by the company's unique worm gear mechanism.
- The compact design makes it possible to reduce the size of the equipment and the adjustment time.
- It is possible to switch rough and fine motion at any position by the coarse and fine motion switching knob.
- Achieves a resolution of 0.5 μm in total displacement.
- The spindle does not rotate beca*** it is a straight line type.
- There is a new lineup of R type with tip shape.
- * When replacing the micrometer head, the movement range may be narrowed or interference with the mounting components may occur dep***ing on the type of stage.
- * When replacing the micrometer head, it is recomm***ed to ask the company for confirmation beforehand.
- * If you keep turning the flutter knob, the stopper inside the micro will work.
- * Do not turn the sewing machine further when you feel it is overloaded as it may ca*** damage.
- * Since the fine motion adjustment section is constructed by applying worm gear, we recomm*** positioning from one direction considering the backlash.
Spec
-
[
Common specification]
- Movement amount: Coarse: 0 - 13mm tremor: 0 - 13mm
- Allowable load (static load): 39.2N (4kgf)
- Minimum reading: Coarse: 0.005mm, fine: 0.0005mm
- Movement amount/1 rotation: Coarse: 0.25mm, fine: 0.005mm
- Mass: 0.1kg
- [Individual specification]
- Tip shape: Flat-type
- RoHS conform product
