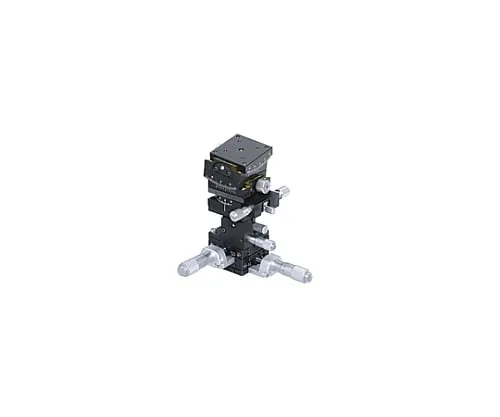

61-6981-85 Xyzθαβ Axis Stage 35mm TSD-40EC
Product Description
Product Model: 61-6981-85Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6981-85
Product Brand: SIGMAKOKI CO., LTD.
Features
- Precision stage for fine adjustment in 6-axis direction.
- It is a combination of XY axis steel stage, Z axis flat steel stage, θ axis coarse vibration stage, αβ axis small gonio stage and αβ axis gonio stage.
- The micrometer head of the XY axis is center pressed for the EC type item number at the ***, and the ES type is side pressed.
Spec
-
[
Common specification]
- Main material: Iron, brass
- Surface treatment: Super black chrome
- [Individual specification]
- Table surface size: □40mm
- Movement amount: XY axis: ±6.5mm, Z Axis: ±3mm
- Rotation range: Coarse: 360 ° tremor: ±5°
- Angle range: α axis: ±15° β axis: ±20°
- Rotation center height: 35mm
- Withstand load: 49.0N (5.0kgf)
- Mass: 1.23kg
- RoHS conform product
