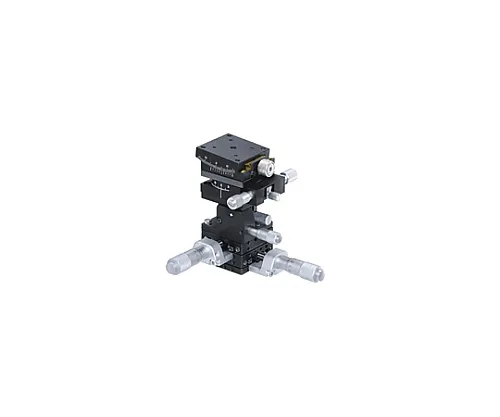

61-6981-81 Xyzθα Axis Stage 51mm TSD-40DC
Product Description
Product Model: 61-6981-81Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6981-81
Product Brand: SIGMAKOKI CO., LTD.
Features
- Precision stage for fine adjustment in 5-axis direction.
- The micrometer head of the XY axis is center pressed for the DC type item number at the ***, and the side pressed for the DS type item.
- It is a combination of XY axis steel stage, Z axis flat steel stage, θ axis coarse vibration stage, α axis small gonio stage and α axis gonio stage.
Spec
-
[
Common specification]
- Main material: Iron, brass
- Surface treatment: Super black chrome
- [Individual specification]
- Table surface size: □40mm
- Movement amount: XY axis: ±6.5mm, Z Axis: ±3mm
- Rotation range: Coarse: 360 ° tremor: ±5°
- Angle range: ±15°
- Rotation center height: 51mm
- Withstand load: 49.0N (5.0kgf)
- Moment rigidity/roll: 4.6″/N/cm
- Mass: 1.03kg
- RoHS conform product
