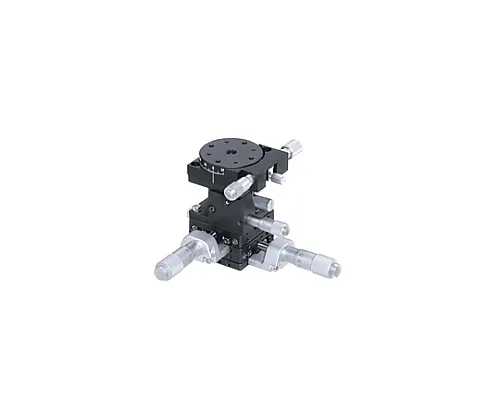

61-6981-73 Xyzθ Axis Stage Φ40mm TSD-409C
Product Description
Product Model: 61-6981-73Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6981-73
Product Brand: SIGMAKOKI CO., LTD.
Features
- Precision stage for fine adjustment in 4-axis direction.
- It is a combination of an XY axis steel stage, a Z axis flat steel stage, and a θ axis rough and fine stage.
Spec
- Table surface size: φ40mm
- Movement amount: X Axis: ±6.5mm Z axis: ±3mm
- Rotation range: Coarse 360 ° fine ± 5°
- Withstand load: 49N (5.0kgf)
- Permissible moment load/pitch: 0.3N・m
- Permissible moment load/yaw: 0.3N・m
- Moment rigidity/pitch: 4″/N・cm
- Moment rigidity/yaw: 4″/N・cm
- Main material: Iron, Brass
- Surface treatment: Super black chrome
- Mass: 0.85kg
- RoHS conform product
