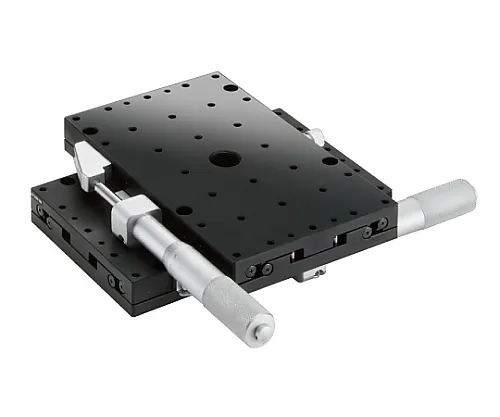

61-6981-63 XY Axis Steel Stage (Long) Stage Size 100 x 160mm TSD-10162S
Analyzer, Testing Equipment

61-6981-63 XY Axis Steel Stage (Long) Stage Size 100 x 160mm TSD-10162S

model: 61-6981-63
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6981-63Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6981-63
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is a very durable XY axis direct movement stage with direct guide processing applied to the quenched steel stage body and moving table.
  • The long type is ***ful when the stage face is rectangular and you want to secure a long movement amount.

Spec

  • Table surface size: 100 x 160mm
  • Micro operation position: Side
  • Movement amount: ±25mm
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Movement guide: Ball guide
  • Main material: Iron
  • Surface treatment: Super black chrome
  • Withstand load: 686N (70.0kgf)
  • Movement accuracy/straightness: 1μm
  • Movement accuracy/pitching: 25″
  • Movement accuracy/yawing: 15″
  • Permissible moment load/pitch: 41.7N・m
  • Permissible moment load/roll: 41.7N・m
  • Permissible moment load/yaw: 19.6N・m
  • Moment rigidity/pitch: 0.05″/N・cm
  • Moment rigidity/roll: 0.05″/N・cm
  • Moment rigidity/yaw: ?
  • Parallelism: 100μm
  • Movement parallelism: 30μm
  • Mass: 4.8kg
  • RoHS conform product
