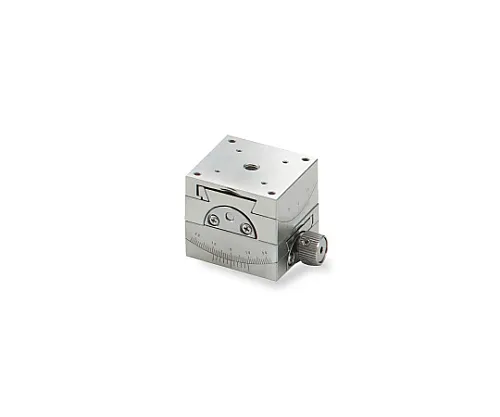

61-6981-52 Αβ Axis Small Stainless Steel Gonio Stage Stage Size 40mm GOHS-40B15
Product Description
Product Model: 61-6981-52Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6981-52
Product Brand: SIGMAKOKI CO., LTD.
Features
- This gonio stage is ***d for posture adjustment (angle adjustment and correction) using worm gear in the ant groove.
- Since high vacuum grease (YVAC2) is ***d, it is also ideal for vacuum handling.
- The GOHS series is suitable for clean room and vacuum applications.
- It is also ideal for *** in tight airtight spaces that do not like outgas.
Spec
- [<αβ axis small Stainless Steel Gonio stage Stage size 40mm> Common specification]
- Table surface size: 40 x 40mm
- Axis type: αβ axis
- Movement guide: Dovetail method
- Main material: Stainless Steel
- Surface treatment: No
- Withstand load: 68.7N (7.0kgf)
- Permissible moment load/pitch: 0.9N・m
- Permissible moment load/roll: 0.9N・m
- Moment rigidity/roll: -
- Parallelism: 100μm
- [Individual specification]
- Rotation center height: 15±0.1mm
- Angle range: ±20°
- Travel per knob rotation: (Upper) β axis: About 2.83° (lower) α axis: Approximately 1.74°
- Vernier minimum reading: 12′
- Rotation center displacement: φ2mm or less
- Mass: 0.45kg
- RoHS conform product
