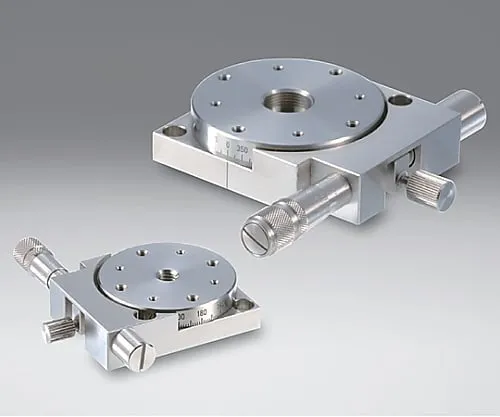

61-6981-48 Θ Axis Flutter/Tremor Stainless Steel Stage Φ40mm KSPS-406M
Product Description
Product Model: 61-6981-48Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6981-48
Product Brand: SIGMAKOKI CO., LTD.
Features
- It is a grinding type θ axis (rotation) coarse motion stage that can rotate 360° of coarse motion and fine motion (selection from micrometer head or fine pitch screw).
- For rough movement, the upper surface of the stage is directly rotated, and for fine movement, the rough part is clamped and performed with a micrometer head or fine pitch screw (±5°).
- All of them are made of stainless steel, so they have excellent corrosion resistance.
- Vacuum grease (YVAC2) is ***d for both the stage body and the micrometer head.
Spec
- [<θ axis flutter/tremor Stainless Steel stage> Common specification]
- Movement guide: Lapping method
- Main material: Stainless Steel
- Surface treatment: No
- [Individual specification]
- Table surface size: φ40mm
- Rotation angle: Coarse: 360 ° tremor: ±5°
- Scale minimum reading: 2°
- Micrometer minimum reading: ≒1′24.2″
- Withstand load: 49N (5.0kgf)
- Maximum moment capacity: 0.3N・m
- Moment stiffness: 1.5″/N・cm
- Parallelism: 30μm
- Eccentricity: 20μm
- Wobble: 20μm
- Mass: 0.3kg
- RoHS conform product
