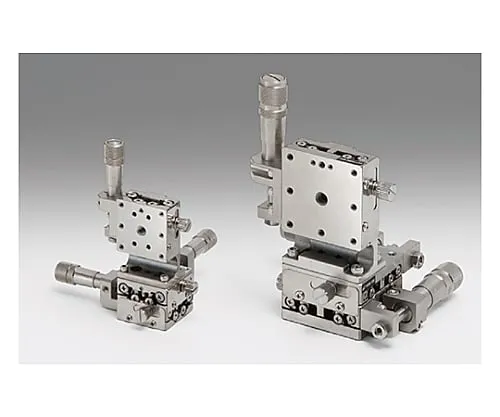

61-6981-36 XYZ Axis Stainless Steel Stage (Vertical) 25 x 25mm XY Axis ±3mm Z Axis ±3mm TSDS-255CL
Product Description
Product Model: 61-6981-36Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6981-36
Product Brand: SIGMAKOKI CO., LTD.
Features
- This straight moving stage has the same structure and performance as the steel stage TSD series and is suitable for clean room and vacuum applications.
- All of them are made of stainless steel, so they have excellent corrosion resistance.
- Both the stage body and the micrometer head *** high vacuum grease (YVAC2).
- The TSDS series is suitable for clean room and vacuum applications.
- It is also ideal for *** in airtight, narrow spaces that dislike outgassing.
Spec
-
[
Common specification]
- Movement guide: Ball guide
- Main material: Stainless Steel
- Surface treatment: No
- [Individual specification]
- Table surface size: 25 x 25mm
- Micro operation position: Center
- Movement amount: XY axis: ±3mm Z axis: ±3mm
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 14.7N (1.5kgf)
- Movement accuracy/straightness: 1μm
- Permissible moment load/pitch: 2.2N・m
- Permissible moment load/roll: 2.2N・m
- Moment rigidity/pitch: 6.7″/N・cm
- Mass: 0.2kg
- RoHS conform product
