61-6981-24 XYZ Axis Flat Steel Stage 25 x 25mm XY Axis ±3mm Z Axis ±3mm TSDS-255C

model: 61-6981-24
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6981-24Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6981-24
Product Brand: SIGMAKOKI CO., LTD.

Features

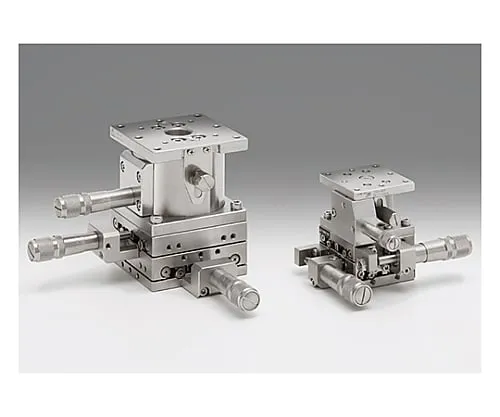

  • This straight moving stage has the same structure and performance as the steel stage TSD series and is suitable for clean room and vacuum applications.
  • All of them are made of stainless steel, so they have excellent corrosion resistance.
  • Both the stage body and the micrometer head *** high vacuum grease (YVAC2).
  • The TSDS series is suitable for clean room and vacuum applications.
  • It is also ideal for *** in airtight, narrow spaces that dislike outgassing.
  • * Due to the Z-axis structure, the springs in the stage may not be able to withstand the load and may stretch out. Therefore, it is not possible to install and *** the stage in the reverse direction.
  • * Due to the structure applying the principle of leverage, there is a deviation (about ±0.02 mm per 0.5 mm/1 rotation of the micrometer head) in the feed amount relative to the scale dep***ing on the position of the moving amount.
  • * The amount of movement on the Y-axis micrometer head side of the TSDS-255C may be less than 3 mm.

Spec

  • [

    Common specification]
  • Movement guide: Ball guide
  • Main material: Stainless Steel
  • Surface treatment: No
  • [Individual specification]
  • Table surface size: 25 x 25mm
  • Micro operation position: Center
  • Movement amount: XY axis: ±3mm Z axis: ±3mm
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Withstand load: 29.4N (3.0kgf)
  • Movement accuracy/straightness: 5μm
  • Permissible moment load/pitch: 1.0N・m
  • Permissible moment load/roll: 1.0N・m
  • Moment rigidity/pitch: 10.55″/N・cm
  • Moment rigidity/roll: 10.55″/N・cm
  • Parallelism: 130μm
  • Mass: 0.2kg
  • RoHS conform product
