Features

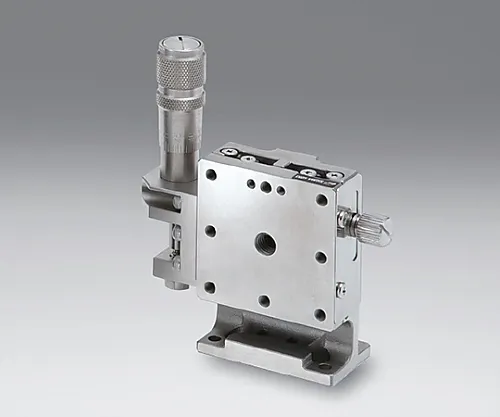

• This straight moving stage has the same structure and performance as the steel stage TSD series and is suitable for clean room and vacuum applications.
• All of them are made of stainless steel, so they have excellent corrosion resistance.
• Both the stage body and the micrometer head *** high vacuum grease (YVAC2).
• The TSDS series is suitable for clean room and vacuum applications.
• It is also ideal for *** in airtight, narrow spaces that dislike outgassing.
• * Due to the Z-axis structure, the springs in the stage may not be able to withstand the load and may stretch out. Therefore, it is not possible to install and *** the stage in the reverse direction.
• * Due to the structure applying the principle of leverage, there is a deviation (about ±0.02 mm per 0.5 mm/1 rotation of the micrometer head) in the feed amount relative to the scale dep***ing on the position of the moving amount.
