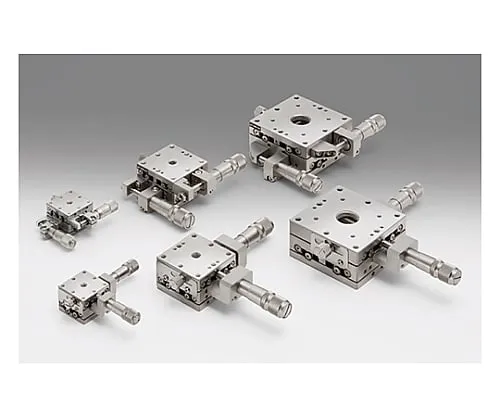

61-6980-75 XY Axis Stainless Steel Stage 25 x 25mm ±3mm TSDS-252C
Product Description
Product Model: 61-6980-75Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6980-75
Product Brand: SIGMAKOKI CO., LTD.
Features
- This straight moving stage has the same structure and performance as the steel stage TSD series and is suitable for clean room and vacuum applications.
- All of them are made of stainless steel, so they have excellent corrosion resistance.
- Both the stage body and the micrometer head *** high vacuum grease (YVAC2).
- The TSDS series is suitable for clean room and vacuum applications.
- It is also ideal for *** in airtight, narrow spaces that dislike outgassing.
- * Dep***ing on the part that secures the micrometer head and the type of micrometer head, it may protrude from the upper surface of the stage.
- * Please **** that dep***ing on the shape of the specimen attached to the stage, it may not be fixed or the amount of movement may not be secured.
Spec
-
[
Common specification]
- Movement guide: Ball guide
- Main material: Stainless Steel
- Surface treatment: No
- [Individual specification]
- Table surface size: 25 x 25mm
- Micro operation position: Center
- Movement amount: ±3mm
- Movement amount/1 rotation: 0.5mm
- Micrometer minimum reading: 0.01mm
- Withstand load: 49N (5.0kgf)
- Movement accuracy/straightness: 0.5μm
- Movement accuracy/pitching: 30″
- Movement accuracy/yawing: 25″
- Permissible moment load/pitch: 3.0N・m
- Permissible moment load/roll: 3.0N・m
- Permissible moment load/yaw: 1.5N・m
- Moment rigidity/pitch: 3.4″/N・cm
- Moment rigidity/roll: 3.4″/N・cm
- Moment rigidity/yaw: 4.0″/N・cm
- Parallelism: 50μm
- Movement parallelism: 20μm
- Orthogonality: 10μm
- Mass: 0.1kg
- RoHS conform product
