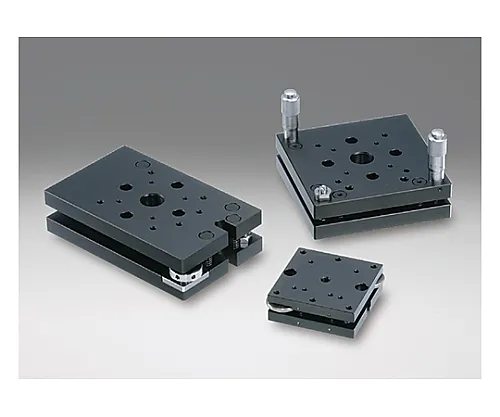

61-6980-35 Αβ Axis Inclined Stage 25 x 25mm AIS-25B
Analyzer, Testing Equipment

61-6980-35 Αβ Axis Inclined Stage 25 x 25mm AIS-25B

model: 61-6980-35
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6980-35Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6980-35
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Tilt stage for tilting and tailgating the sample on the table surface to any angle.
  • Since the operation part (adjustment ring) is attached to the side of the stage, the protrusion part is suppressed as much as possible.
  • The adjustment ring type is ideal for quick and easy slope adjustment.
  • The micrometer type is effective for *** in constrained locations where you must operate from above.
  • The AIS-8013B/1016B/1622B is the same size as the precision lab jack (LJ/LJA) table surface and can be ***d in combination.
  • * To maintain three points due to its structure, *** under surface load.
  • * Cannot be ***d as a wall hanging or in reverse of heaven and earth.

Spec

  • Table surface size: 25 x 25mm
  • Slope range: ±2°
  • Travel per knob rotation: Approximately 1.8°
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • Withstand load: 9.8N (1.0kgf)
  • Mass: 0.04kg
  • RoHS conform product
