Spec

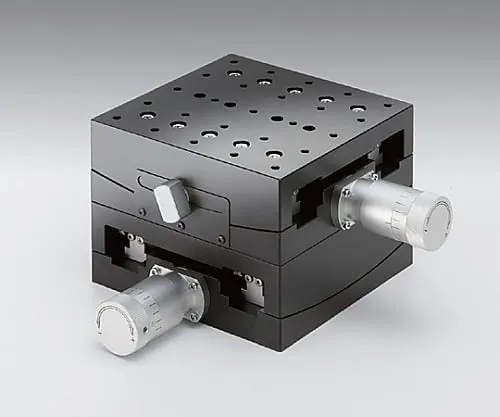

• [<αβ axis large type Gonio stage Stage size 120mm> Common specification]
• Table surface size: 120 x 120mm
• Axis type: αβ axis
• Movement guide: Ball guide
• Main material: Aluminum
• Surface treatment: Black anodic oxide
• Withstand load: 294N (30.0kgf)
• Permissible moment load/pitch: 19.6N・m
• Permissible moment load/roll: 19.6N・m
• Permissible moment load/yaw: -
• Moment rigidity/pitch: -
• Moment rigidity/roll: -
• Moment rigidity/yaw: -
• [Individual specification]
• Rotation center height: 182mm
• Angle range/(upper) β axis: ±5°
• Angle range/(lower) α axis: ±5°
• Vernier minimum reading: 1′
• Travel per knob rotation/(upper) β axis: Approximately 0.33°
• Travel per knob rotation/(lower) α axis: Approximately 0.33°
• Rotation center displacement: φ0.02mm or less
• Mass: 4.4kg
• RoHS conform product
