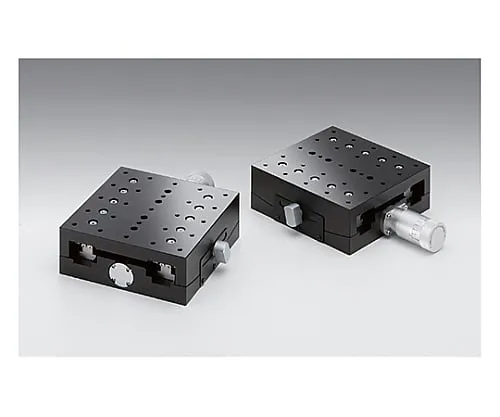

61-6980-26 Α Axis Large Gonio Stage Stage Size 120mm 182mm GOHTA-120A182
Analyzer, Testing Equipment

61-6980-26 Α Axis Large Gonio Stage Stage Size 120mm 182mm GOHTA-120A182

model: 61-6980-26
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6980-26Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6980-26
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Although aluminum is ***d as the main material, the ball guide is ***d as the moving guide, so it has excellent high load capacity.

Spec

  • [<α axis large type Gonio stage Stage size 120mm> Common specification]
  • Table surface size: 120 x 120mm
  • Axis type: α axis
  • Movement guide: Ball guide
  • Main material: Aluminum
  • Surface treatment: Black anodic oxide
  • Withstand load: 294N (30.0kgf)
  • Permissible moment load/pitch: 19.6N・m
  • Permissible moment load/roll: 44.1N・m
  • Permissible moment load/yaw: -
  • Moment rigidity/pitch: -
  • Moment rigidity/roll: 0.02″/ N・cm
  • Moment rigidity/yaw: -
  • [Individual specification]
  • Rotation center height: 182mm
  • Angle range: ±5°
  • Vernier minimum reading: 1′
  • Travel per knob rotation: Approximately 0.33°
  • Rotation center displacement: φ0.02mm or less
  • Mass: 2.2kg
  • RoHS conform product
