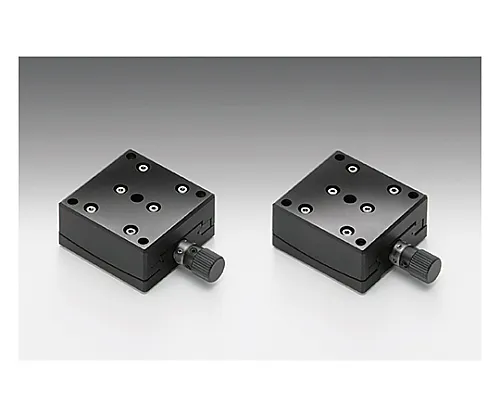

61-6980-08 Α Axis Screw Type V Groove Gonio Stage Stage Size 40mm 40±0.1mm GOHB-40A40
Product Description
Product Model: 61-6980-08Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6980-08
Product Brand: SIGMAKOKI CO., LTD.
Features
- A gonio stage with excellent cost performance by adopting a V-groove guide and a screw feed system.
- The screw feed mechanism has a large contact area and excellent durability.
- The center of rotation can be ***d to a greater extent than the conventional gonio stage (GOH).
- * Vernier is not included.
Spec
- [<α axis screw type V-groove Gonio stage Stage size 40mm> Common specification]
- Table surface size: 40 x 40mm
- Axis type: α axis
- Movement guide: V-groove method
- Main material: Brass
- Surface treatment: Super black chrome
- Withstand load: 39.2N (4.0kgf)
- Permissible moment load/pitch: 1.0N・m
- Permissible moment load/roll: 2.0N・m
- Permissible moment load/yaw: 2.0N・m
- Moment rigidity/pitch: 0.5″/ N・cm
- Moment rigidity/roll: 0.4″/ N・cm
- Moment rigidity/yaw: 0.35″/ N・cm
- [Individual specification]
- Rotation center height: 40±0.1mm
- Angle range: ±8°
- Travel per knob rotation: Approximately 0.54°
- Rotation center displacement: φ0.05mm or less
- Mass: 0.25kg
- RoHS conform product
